LHD-10 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 10POS 3.96MM

Part	Shrouding	Contact Finish - Post	Current Rating (Amps)	Insulation Height	Insulation Height	Connector Type	Fastening Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Mounting Type	Style	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length

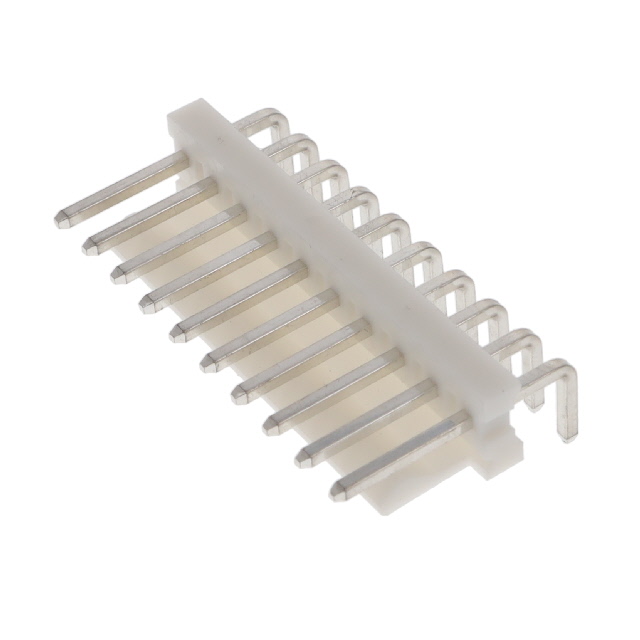

Adam Tech LHD-10-TRB	Shrouded - 1 Wall	Tin	7 A	7.62 mm	0.3 in	Header	Friction Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	0.126 "	3.2 mm	UL94 V-2	All	White	Right Angle Through Hole	Board to Cable/Wire	Male Pin	11.4 mm	0.449 in	10	Solder	85 °C	-40 C	Square	3.96 mm	0.156 in	1	Brass

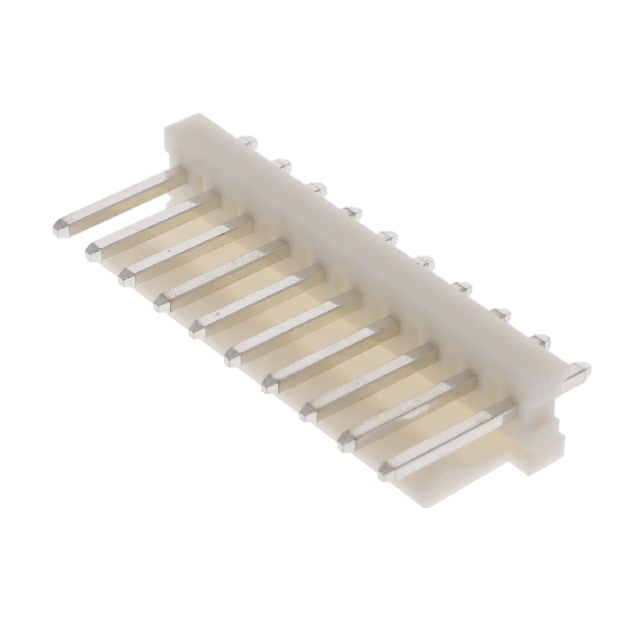

Adam Tech LHD-10-TS	Shrouded - 1 Wall	Tin	7 A			Header	Friction Lock	Nylon 6/6 Polyamide (PA66)			UL94 V-2	All	White	Through Hole	Board to Cable/Wire	Male Pin	11.38 mm	0.448 in	10	Solder	105 ░C	-40 C	Square	3.96 mm	0.156 in	1	Brass	0.142 in	3.6 mm	10.8 mm	0.425 in	18.16 mm	0.715 in

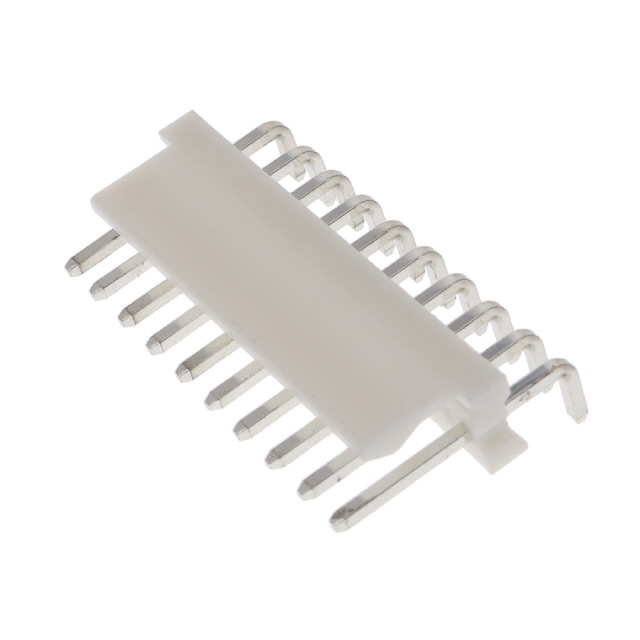

Adam Tech LHD-10-TRA	Shrouded - 1 Wall		7 A	7.62 mm	0.3 in	Header	Friction Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	0.126 "	3.2 mm	UL94 V-2	All	White	Right Angle Through Hole	Board to Cable/Wire	Male Pin	11.4 mm	0.449 in	10	Solder	85 °C	-40 C	Square	3.96 mm	0.156 in	1	Brass
