LEX240 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 25.91-34.04MM M40

Part	Material	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Type	Color	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

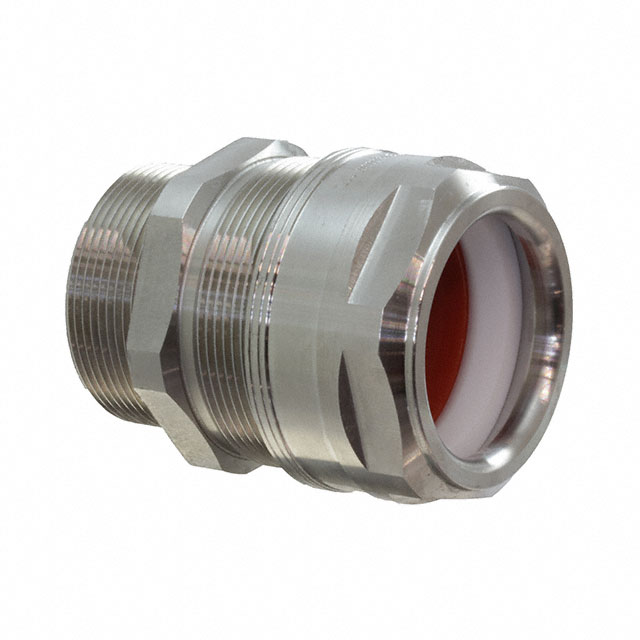

Pflitsch LEX240VA/316LHTS	Stainless Steel	34.04 mm	1.34 in	O-Ring	-60 °C	130 °C	IP66 IP68	0.63 in	16 mm	1.575 in	40 mm	Cable Gland	Silver	M40x1.5	25.91 mm	1.02 in

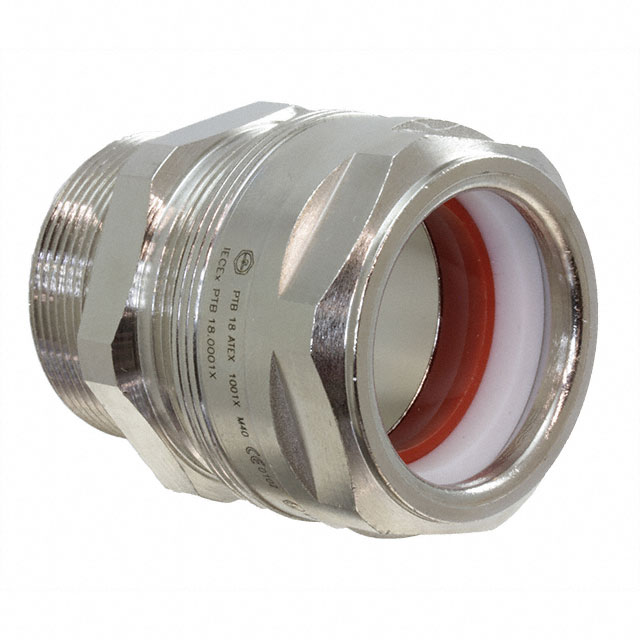

Pflitsch LEX240MSHTS	Brass Nickel Plated	34.04 mm	1.34 in	O-Ring	-60 °C	130 °C	IP66 IP68	0.63 in	16 mm	1.575 in	40 mm	Cable Gland	Silver	M40x1.5	25.91 mm	1.02 in
