HLMP-EH08 Series

Catalog

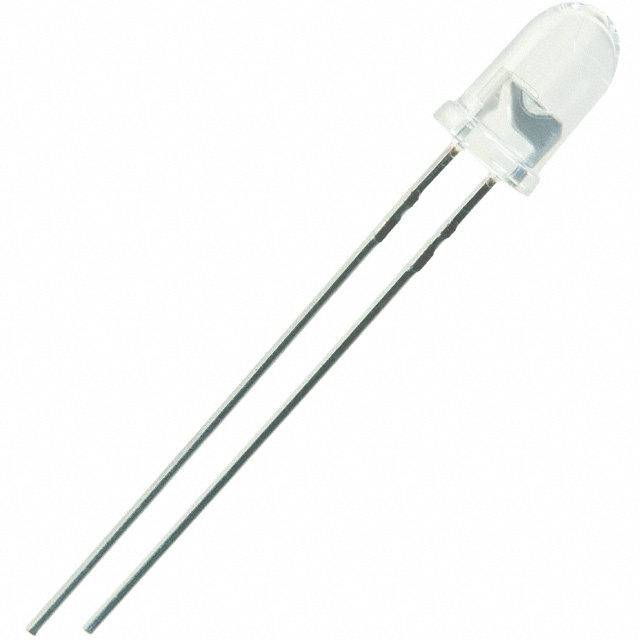

LED RED CLEAR T-1 3/4 T/H

Part	Lens Style	Lens Size	Lens Size	Configuration	Millicandela Rating	Supplier Device Package	Wavelength - Dominant	Mounting Type	Viewing Angle	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Lens Color	Lens Transparency	Height (Max) [Max]
Broadcom Limited HLMP-EH08-Y2000	Round with Domed Top	T-1 3/4	5 mm	Standard	18150 mcd	T-1 3/4	615 nm	Through Hole	8 °	20 mA	621 nm	1.94 V	Red	Radial	Colorless	Clear	8.91 mm
Broadcom Limited HLMP-EH08-UX000	Round with Domed Top	T-1 3/4	5 mm	Standard	6250 mcd	T-1 3/4	615 nm	Through Hole	8 °	20 mA	621 nm	1.94 V	Red	Radial	Colorless	Clear	8.91 mm
Broadcom Limited HLMP-EH08-Y20DD	Round with Domed Top	T-1 3/4	5 mm	Standard	18150 mcd	T-1 3/4	615 nm	Through Hole	8 °	20 mA	621 nm	1.94 V	Red	Radial	Colorless	Clear	8.91 mm
