GWVJLPE1 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

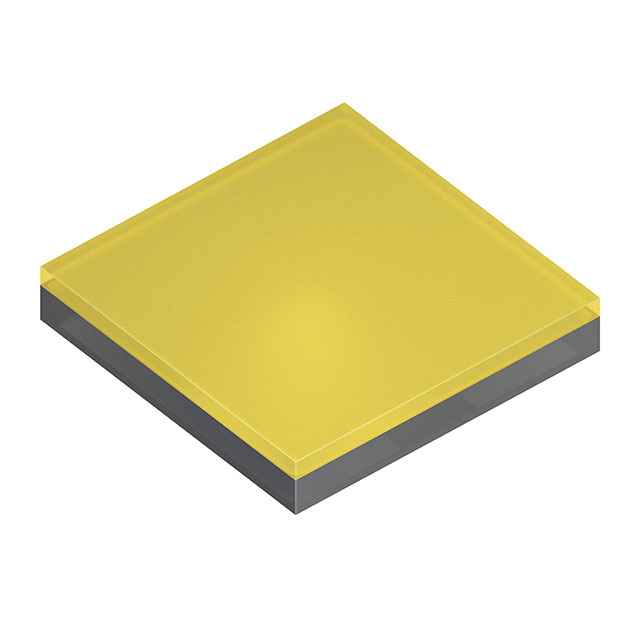

LED OSLON WARM WHT 2700K 0404
| Part | Thermal Resistance of Package | Current - Test | CRI (Color Rendering Index) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Lumens/Watt @ Current - Test | Current - Max [Max] | Viewing Angle | Flux @ 85°C, Current - Test | Mounting Type | Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | CCT (K) | Voltage - Forward (Vf) (Typ) | Flux @ 85°C, Current - Test [Min] | Flux @ 85°C, Current - Test [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 7.2 °C/W | 350 mA | 80 | 0.22 mm | 0.009 " | 0404 (1010 Metric) | 95 lm/W | 700 mA | 120 ° | 93 lm | Surface Mount | Warm White | 0.042 " | 0.042 " | 1.08 mm | 1.08 mm | 0404 | 2700 K | 2.8 V | ||
ams-OSRAM USA INC. | 7.2 °C/W | 350 mA | 80 | 0.22 mm | 0.009 " | 0404 (1010 Metric) | 100 lm/W | 700 mA | 120 ° | 98 lm | Surface Mount | Warm White | 0.042 " | 0.042 " | 1.08 mm | 1.08 mm | 0404 | 3000 K | 2.8 V | ||
ams-OSRAM USA INC. | 7.2 °C/W | 350 mA | 80 | 0.22 mm | 0.009 " | 0404 (1010 Metric) | 110 lm/W | 700 mA | 120 ° | Surface Mount | Neutral White | 0.042 " | 0.042 " | 1.08 mm | 1.08 mm | 0404 | 4000 K | 2.8 V | 95 lm | 120 lm |
