306-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 16POS 0.156
| Part | Contact Finish | Read Out | Color | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Material - Insulation | Number of Positions | Contact Type | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Material | Termination | Gender | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

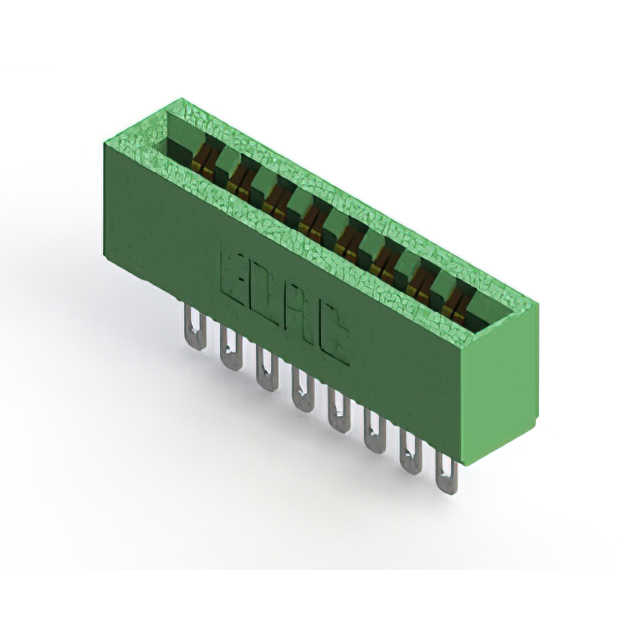

 EDAC Inc. | Tin | Dual | Green | Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | ||||||

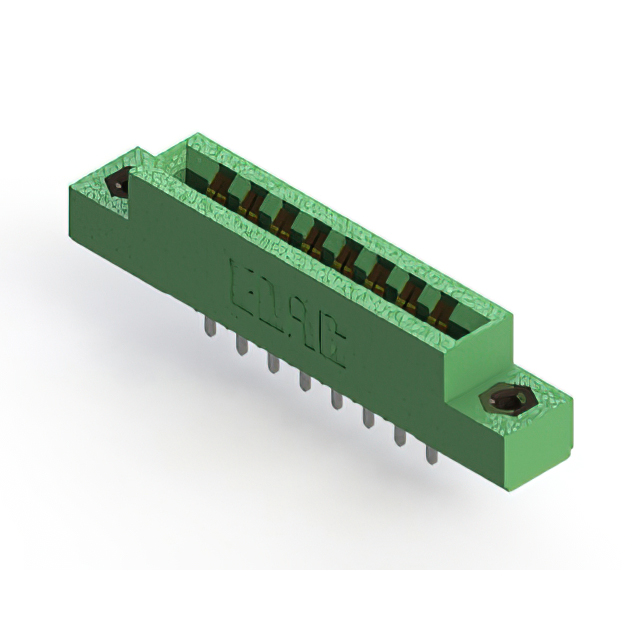

 EDAC Inc. | Gold | Dual | Green | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder Eyelet(s) | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||
 EDAC Inc. | Gold | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | |||

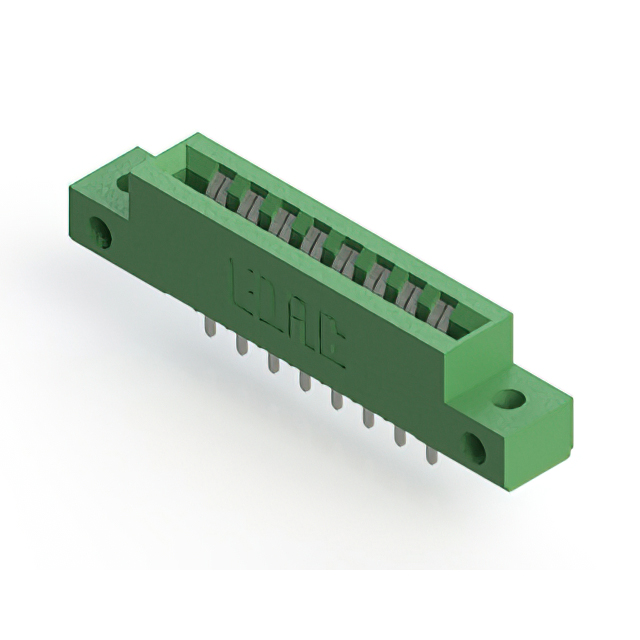

 EDAC Inc. | Tin | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |||
 EDAC Inc. | Gold | Dual | Green | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder Eyelet(s) | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||
 EDAC Inc. | Gold | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | Gold | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Gold | Dual | Green | Free Hanging (In-Line) | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder Eyelet(s) | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | ||||
 EDAC Inc. | Gold | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | Tin | Dual | Green | Panel Mount Through Hole | 8 | 8 | 8 | Polyester Thermoplastic | 16 | Cantilever | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Copper Alloy | Solder | Female | 2 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening |
