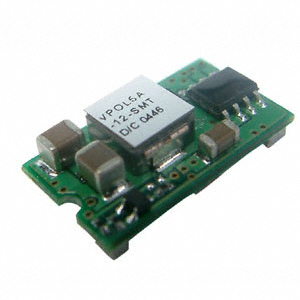

VPOL5A Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 0.8-3.6V 18W
| Part | Control Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Features | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Mounting Type | Voltage - Input (Min) [Min] | Package / Case | Applications | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Power (Watts) | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Active High Enable | 20.3 mm | 11.4 mm | 6.1 mm | 0.24 in | 0.45 in | 0.8 " | OCP OTP Remote On/Off SCP UVLO | 1 | 5.5 V | 94 % | Surface Mount | 3 V | 5-SMD Module | ITE (Commercial) | 3.6 V | 0.8 V | 18 W | 5 A | 85 °C | -40 C | Non-Isolated PoL Module |
 CUI Inc. | Active High Enable | 20.3 mm | 11.4 mm | 6.1 mm | 0.24 in | 0.45 in | 0.8 " | OCP OTP Remote On/Off SCP UVLO | 1 | 14 V | 92 % | Surface Mount | 8.3 V | 5-SMD Module | ITE (Commercial) | 5 V | 0.75 V | 5 A | 85 °C | -40 C | Non-Isolated PoL Module |
