MAX17504 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL KIT FOR MAX17504

Part	Current - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Utilized IC / Part	Regulator Topology	Main Purpose	Outputs and Type	Outputs and Type	Frequency - Switching	Voltage - Output	Voltage - Input (Min) [Min]	Topology	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Configuration	Number of Outputs	Function

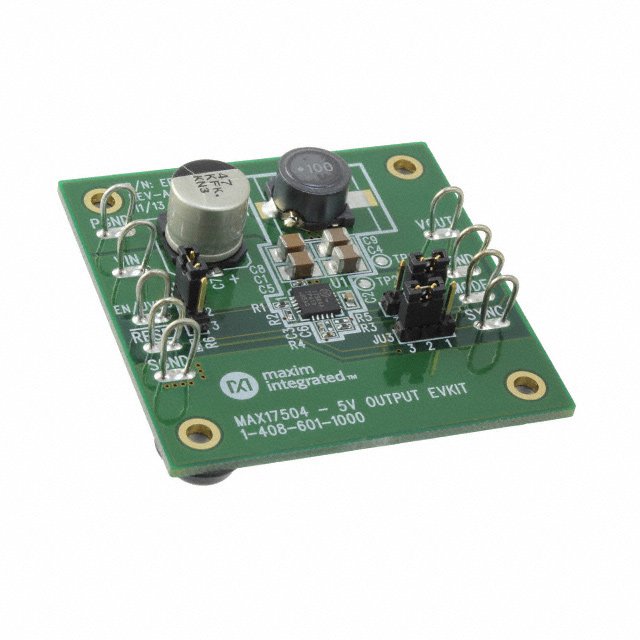

Analog Devices Inc./Maxim Integrated MAX17504EVKITB#	3.5 A	Fully Populated	60 V	7.5 V	Board(s)	MAX17504	Buck	DC/DC Step Down	Non-Isolated	1	500 kHz	5 V
Analog Devices Inc./Maxim Integrated MAX17504SATP+T	3.5 A												4.5 V	Buck	Adjustable	2.2 MHz	200 kHz	20-WQFN Exposed Pad	0.9 V	20-TQFN (5x5)	54 V	60 V	-40 °C	125 ¯C	Surface Mount	Positive	1	Step-Down

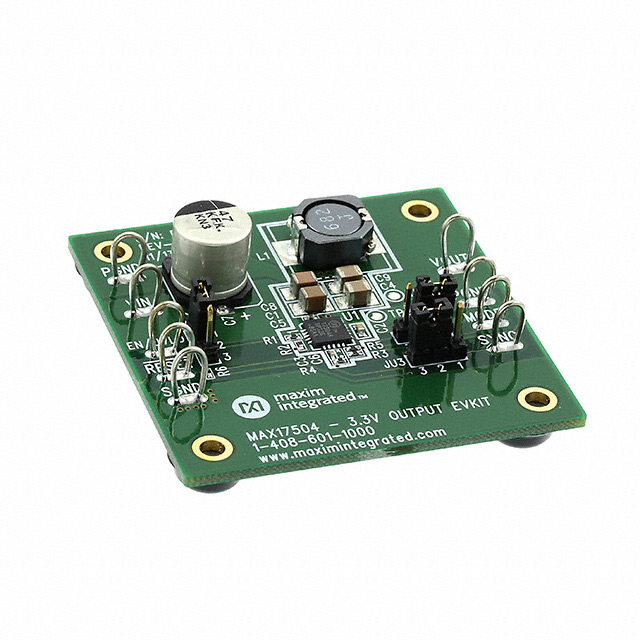

Analog Devices Inc./Maxim Integrated MAX17504EVKITA#	3.5 A	Fully Populated	60 V	5 V	Board(s)	MAX17504	Buck	DC/DC Step Down	Non-Isolated	1	450 kHz	3.3 V
Analog Devices Inc./Maxim Integrated MAX17504EVKITBE#	3.5 A	Fully Populated	60 V	7.5 V	Board(s)	MAX17504	Buck	DC/DC Step Down	Non-Isolated	1	500 kHz	5 V
Analog Devices Inc./Maxim Integrated MAX17504ATP+T	3.5 A												4.5 V	Buck	Adjustable	2.2 MHz	200 kHz	20-WQFN Exposed Pad	0.9 V	20-TQFN (5x5)	54 V	60 V	-40 °C	125 ¯C	Surface Mount	Positive	1	Step-Down
Analog Devices Inc./Maxim Integrated MAX17504SATP+	3.5 A												4.5 V	Buck	Adjustable	2.2 MHz	200 kHz	20-WQFN Exposed Pad	0.9 V	20-TQFN (5x5)	54 V	60 V	-40 °C	125 ¯C	Surface Mount	Positive	1	Step-Down
Analog Devices Inc./Maxim Integrated MAX17504AATP+	3.5 A												4.5 V	Buck	Adjustable	2.2 MHz	200 kHz	20-WFQFN Exposed Pad	0.9 V	20-TQFN (4x4)	54 V	60 V			Surface Mount	Positive	1	Step-Down
