EVQ-P9 Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Switch Travel	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage [x]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Illumination	Actuator Orientation	Features	Mounting Type	Actuator Type	Switch Function	Outline [y]	Outline [x]	Termination Style
Panasonic Industrial Automation Sales EVQ-P9102W	0.25 mm	2.5 mm	0.02 A 15 VDC	400 gf	85 °C	-40 °C	200000 Cycles	SPST-NO	Non-Illuminated	Top Actuated	Grounding Pin	Surface Mount	Rectangular Button	Off-Mom	3.5 mm	4.7 mm	J Lead

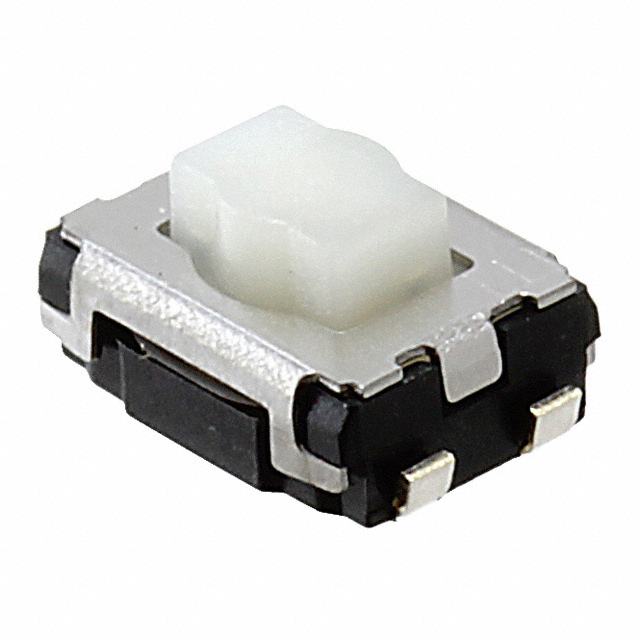

Panasonic Industrial Automation Sales EVQ-P9H02W	0.25 mm	2.5 mm	0.02 A 15 VDC	0.5 kgf	85 °C	-40 °C	200000 Cycles	SPST-NO	Non-Illuminated	Top Actuated	Grounding Pin	Surface Mount	Rectangular Button	Off-Mom	3.5 mm	4.7 mm	J Lead

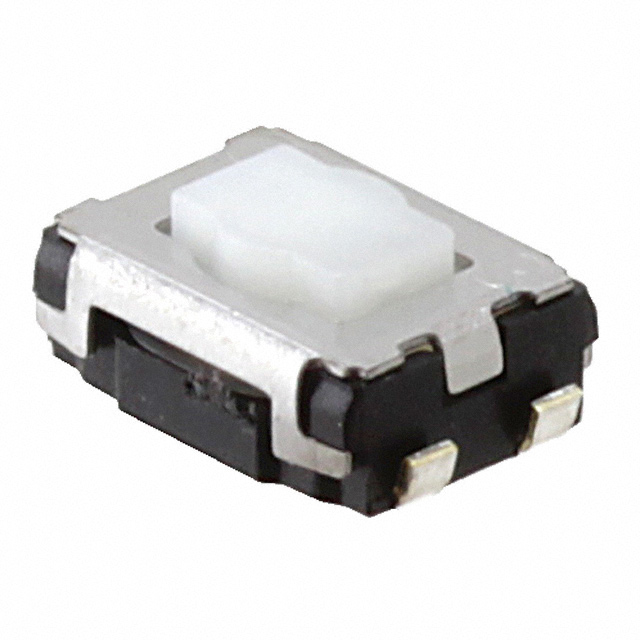

Panasonic Industrial Automation Sales EVQ-P9H02M	0.25 mm	2.1 mm	0.02 A 15 VDC	0.5 kgf	85 °C	-40 °C	200000 Cycles	SPST-NO	Non-Illuminated	Top Actuated	Grounding Pin	Surface Mount	Rectangular Button	Off-Mom	3.5 mm	4.7 mm	J Lead
Panasonic Industrial Automation Sales EVQ-P9102M	0.25 mm	2.1 mm	0.02 A 15 VDC	400 gf	85 °C	-40 °C	200000 Cycles	SPST-NO	Non-Illuminated	Top Actuated	Grounding Pin	Surface Mount	Rectangular Button	Off-Mom	3.5 mm	4.7 mm	J Lead

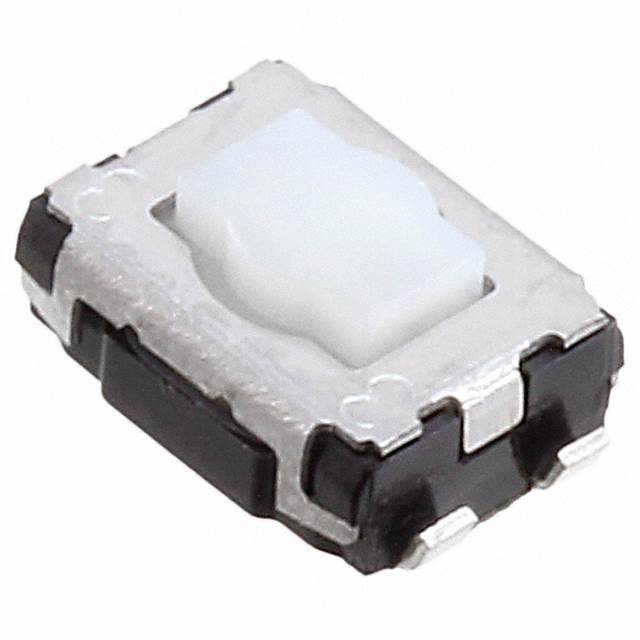

Panasonic Industrial Automation Sales EVQ-P9P02M	0.25 mm	2.1 mm	0.02 A 15 VDC	0.5 kgf	85 °C	-40 °C	200000 Cycles	SPST-NO	Non-Illuminated	Top Actuated		Surface Mount	Rectangular Button	Off-Mom	3.5 mm	4.7 mm	J Lead
