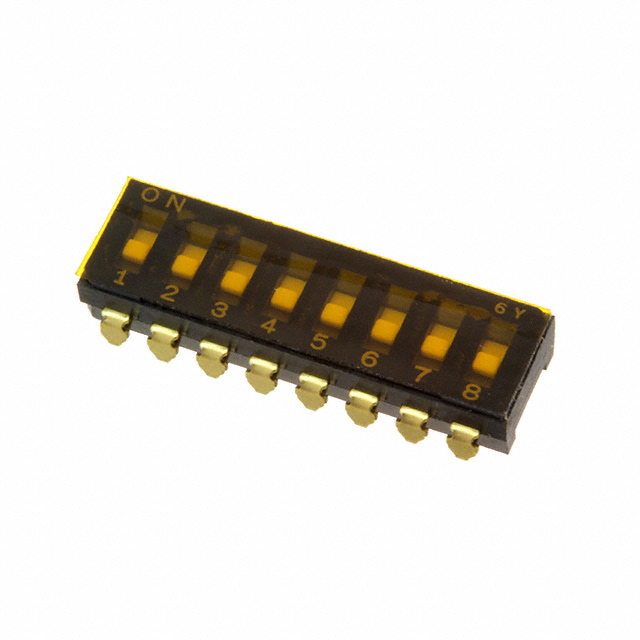

CFS-0800 Series

Catalog

DIP SWITCH, 8PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Contact Finish	Voltage Rating	Body Material	Actuator Level	Features	Current Rating (Amps)	Circuit	Number of Positions	Height Above Board	Height Above Board	Contact Material	Mounting Type	Washable	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Termination Style	Actuator Type	Length	Length	Electrical Life
Nidec Components Corporation CFS-0800TA	Gold	6 VDC	Polyphenylene Sulfide (PPS)	Flush Recessed	Tape Seal	100 mA	SPST	8	0.154 in	3.9 mm	Copper Alloy	Surface Mount		85 °C	-40 °C	0.1 in	Full	2.54 mm	J Lead	Slide (Standard)	0.858 "	21.8 mm	1000 Cycles
Nidec Components Corporation CFS-0800TB	Gold	6 VDC	Polyphenylene Sulfide (PPS)	Flush Recessed	Tape Seal	100 mA	SPST	8	0.146 in	3.7 mm	Copper Alloy	Surface Mount		85 °C	-40 °C	0.1 in	Full	2.54 mm	Gull Wing	Slide (Standard)	0.858 "	21.8 mm	1000 Cycles
