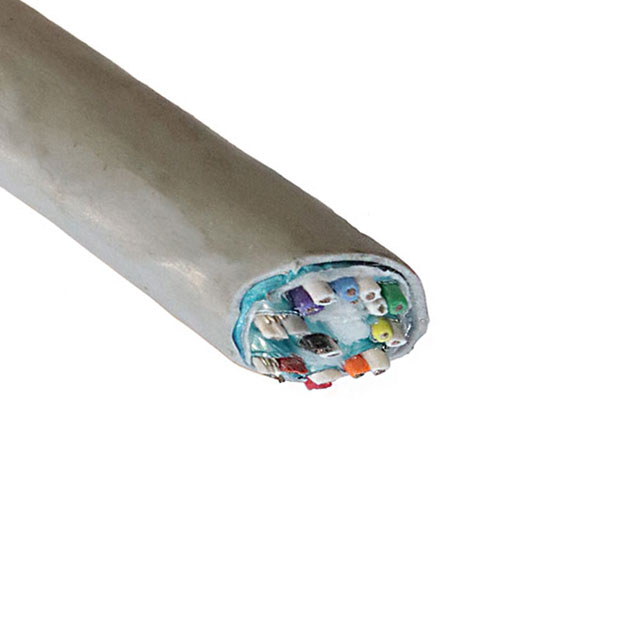

78209 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 18COND 28AWG
| Part | Shield Coverage | Shield Material | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Material | Ratings | Conductor Insulation | Conductor Material | Jacket Color | Wire Gauge | Number of Conductors | Features | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Multi-Pair | 100 ft | 30.5 m | 0.381 mm | 0.015 in | 6.27 mm | 0.247 in | 80 °C | -40 C | 40 AWG | 19 | Foil | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21460 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | Slate | 28 AWG | 18 | Biological Compatibility Drain Wire Rip Cord | 300 VDC |
