1544141 Series

Catalog

CONN QC RCPT 10-12AWG 0.315

Part	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Termination	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Terminal Type	Contact Material	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Tab Width	Tab Width	Gender	Contact Finish	Length - Overall [x]	Length - Overall [x]	Mounting Type

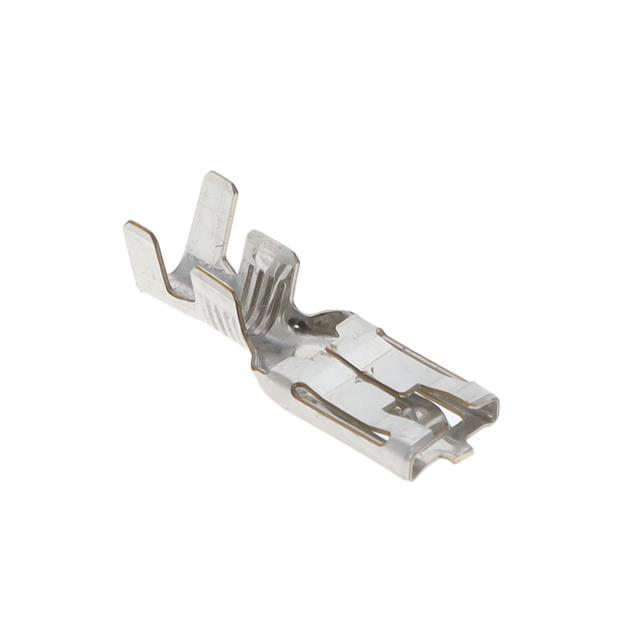

TE Connectivity Raychem Cable Protection 1544141-1	12 AWG	10 AWG	Non-Insulated	Crimp	0.126 "	3.2 mm	5.16 mm	0.203 in	Standard	Brass	0.039 in	0.99 mm	0.472 in	12 mm	8 mm	0.315 in	Female	Tin	1.063 in	27 mm	Free Hanging (In-Line)
