DE09P564 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

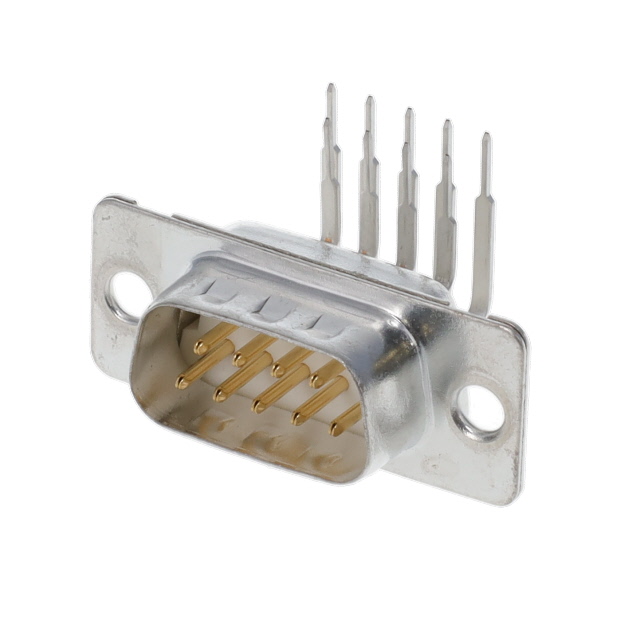

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Contact Finish | Connector Type | Mounting Type | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Backset Spacing | Backset Spacing | Current Rating (Amps) | Features | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Termination | Connector Style | Contact Type | Number of Rows | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Gold GXT™ | Male Pins Plug | Through Hole Right Angle | Flash | DE E | 1 | UL94 V-0 | 0.409 in | 10.4 mm | 5 A | Grounding Indents | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Copper Alloy | Thermoplastic | Solder | D-Sub | Signal | 2 | 9 | |
Amphenol ICC (FCI) | Gold GXT™ | Male Pins Plug | Through Hole Right Angle | Flash | DE E | 1 | UL94 V-0 | 0.409 in | 10.4 mm | 5 A | Board Lock Grounding Indents | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Copper Alloy | Thermoplastic | Solder | D-Sub | Signal | 2 | 9 | 300 VDC |
