FAD1-05010 Series

Manufacturer: Qualtek

Catalog

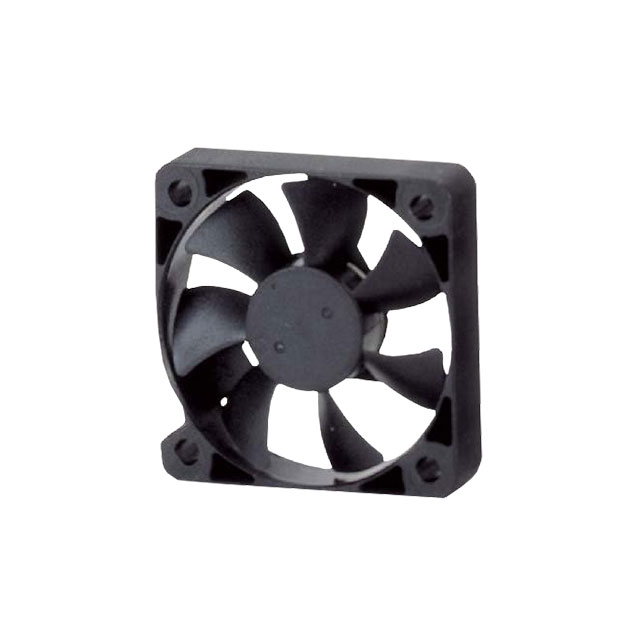

FAN AXIAL 50X10.5MM 5VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Power (Watts)	Voltage - Rated	Fan Type	Termination	Air Flow	Air Flow	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Bearing Type	Width [y]	RPM	Current Rating (Amps)
Qualtek FAD1-05010BBMW11	Plastic	5.5 V	4.5 V	Plastic	0.65 W	5 V	Tubeaxial	2 Wire Leads	0.252 m³/min	9 CFM	CE cURus TUV	50 mm	50 mm	24 dB	70 °C	-10 °C	18.14 g	0.04 lb	19.9 Pa	0.08 in H2O	Ball	10.5 mm	4300 RPM
Qualtek FAD1-05010DBLW11	Plastic	26.4 VDC	21.6 VDC	Plastic	1.2 W	24 VDC	Tubeaxial	2 Wire Leads	0.224 mł/min	8 CFM	CE cURus TUV	50 mm	50 mm	20 dB	70 °C	-10 °C	18.14 g	0.04 lb	12.4 Pa	0.05 in H2O	Ball	10.5 mm	3700 RPM	50 mA
Qualtek FAD1-05010DHMW11					1.44 W	24 VDC	Tubeaxial	2 Wire Leads	0.252 m³/min	9 CFM	CE cURus TUV	50 mm	50 mm	24 dB	70 °C	-10 °C	18.14 g	0.04 lb	19.9 Pa	0.08 in H2O	Hydrodynamic	10.5 mm	4300 RPM
