SWF150 Series

Catalog

AC/DC CONVERTER 24V 150W

Part	Approval Agency	Voltage - Output 1	Mounting Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Isolation	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Number of Outputs	Applications	Features	Voltage - Output 1 [custom]
Sanken Electric USA Inc. SWF150P-24-L-R	CE cURus	24 V	Chassis Mount	150 W	70 °C	-10 °C	6.3 A	3000 V	Open Frame	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	91 %	1	ITE (Commercial)
Sanken Electric USA Inc. SWF150P-24-L	CE cURus	24 V	Chassis Mount	150 W	70 °C	-10 °C	6.3 A	3000 V	Open Frame	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	91 %	1	ITE (Commercial)	Adjustable Output Universal Input

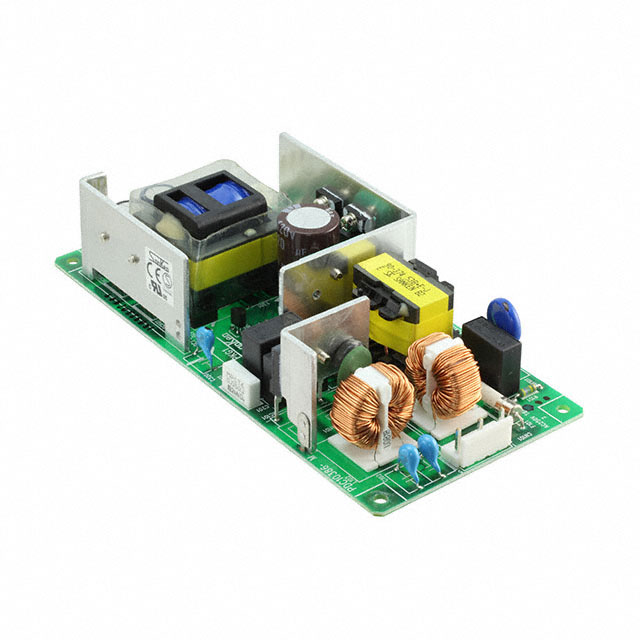

Sanken Electric USA Inc. SWF150P-48-R	CE	48 V	Chassis Mount	150 W	70 °C	-10 °C	3.2 A	3000 V	Open Frame	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input

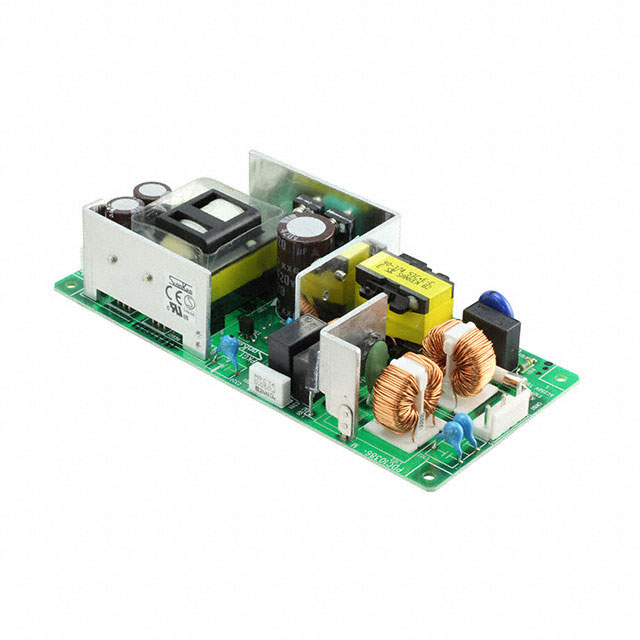

Sanken Electric USA Inc. SWF150P-36	CE		Chassis Mount	150 W	70 °C	-10 °C	4.2 A	3000 V	Open Frame	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	91 %	1	ITE (Commercial)	Adjustable Output Universal Input	36 V
Sanken Electric USA Inc. SWF150P-24-R	CE cURus	24 V	Chassis Mount	150 W	70 °C	-10 °C	6.3 A	3000 V	Open Frame	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	91 %	1	ITE (Commercial)
Sanken Electric USA Inc. SWF150P-48-L	CE	48 V	Chassis Mount	150 W	70 °C	-10 °C	3.2 A	3000 V	Enclosed	7.4 in	188 mm	47 mm	1.85 in	3.35 in	85 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Universal Input
Sanken Electric USA Inc. SWF150P-48-LC	CE	48 V	Chassis Mount	150 W	70 °C	-10 °C	3.2 A	3000 V	Enclosed	7.4 in	188 mm	47 mm	1.85 in	3.35 in	85 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Universal Input
Sanken Electric USA Inc. SWF150P-48-LC-R	CE	48 V	Chassis Mount	150 W	70 °C	-10 °C	3.2 A	3000 V	Enclosed	7.4 in	188 mm	47 mm	1.85 in	3.35 in	85 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input
Sanken Electric USA Inc. SWF150P-36-L	CE		Chassis Mount	150 W	70 °C	-10 °C	4.2 A	3000 V	Enclosed	7.4 in	188 mm	47 mm	1.85 in	3.35 in	85 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Universal Input	36 V
Sanken Electric USA Inc. SWF150P-48-L-R	CE	48 V	Chassis Mount	150 W	70 °C	-10 °C	3.2 A	3000 V	Enclosed	7.4 in	188 mm	47 mm	1.85 in	3.35 in	85 mm	91 %	1	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input
