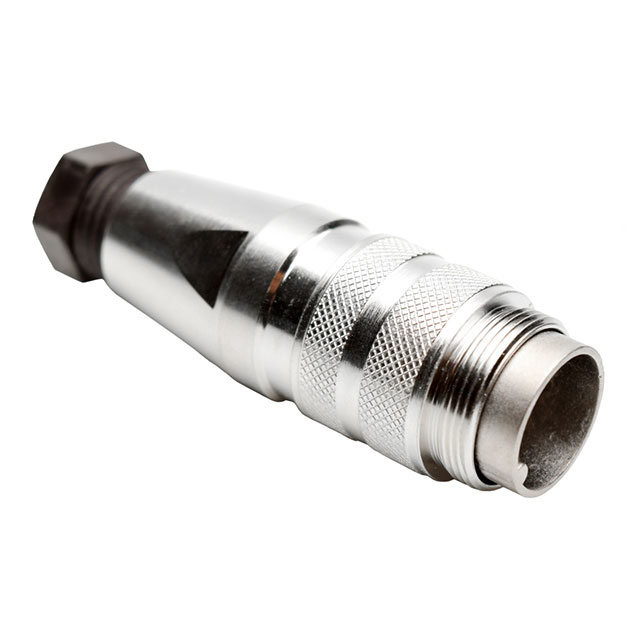

C091 11H005 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN PLUG HSNG MALE 5POS INLINE
| Part | Features | Contact Size | Insert Material | Number of Positions | Ingress Protection | Shell Finish | Orientation | Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Includes | Contact Type | Shell Size - Insert | Note | Fastening Type | Material Flammability Rating | Shell Material | Shielding | Housing Color | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

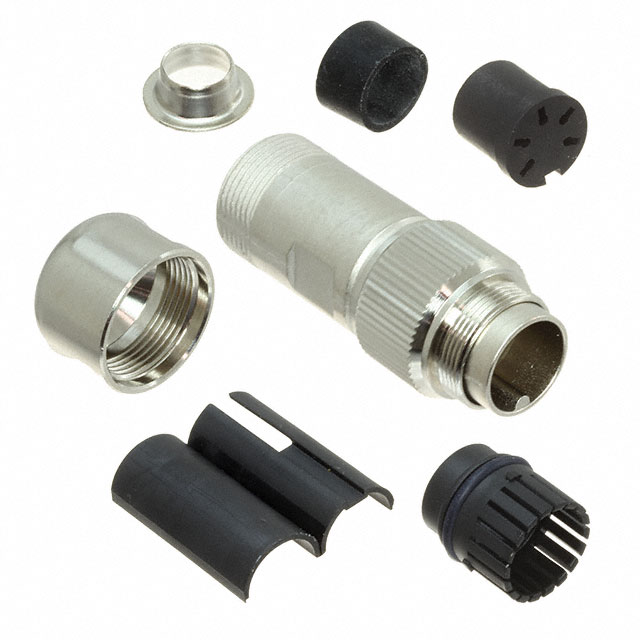

 Amphenol Tuchel Industrial | Backshell Cable Clamp Coupling Nut | 1.5 mm | Thermoplastic | 5 | IP65 IP67 IP69K | Nickel | Keyed | For Male Pins | -40 C | 100 °C | Circular | 1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers | Crimp | M16-5 | Contacts Not Included | Threaded | UL94 V-0 | Die Cast | Shielded | Silver | Free Hanging (In-Line) | Plug Housing |
 Amphenol Tuchel Industrial | Backshell Coupling Nut Strain Relief | Thermoplastic | 5 | IP68 IP69K | Nickel | Keyed | For Male Pins | -40 C | 100 °C | Circular | Crimp | M16-5 | Contacts Not Included | Threaded | UL94 V-0 | Zinc Die Cast | Shielded | Silver | Free Hanging (In-Line) | Plug Housing |
