MKJ5A Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Current Rating (Amps) | Insert Material | Primary Material | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Fastening Type | Mounting Type | Contact Material | Color | Connector Type | Orientation | Termination | Shell Finish | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Ingress Protection | Applications | Number of Positions | Voltage Rating | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | 9 | 10 | Threaded | Free Hanging (In-Line) | Copper Alloy | Olive Drab | Receptacle Female Sockets | C | Crimp | Olive Drab Cadmium | Shielded | -55 C | 150 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 10 | 500 VAC | ||||
ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | 12 | 26 | Threaded | Panel Mount | Copper Alloy | Silver | Receptacle Male Pins | A | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 26 | 500 VAC | Bulkhead - Front Side Nut | |||
 ITT Cannon, LLC | 5 A | Metal | Aluminum Alloy | 9 | 10 | Threaded | Free Hanging (In-Line) | Plug Male Pins | A | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | 10 | 500 VAC | 50 µin | 1.27 µm | ||||||
 ITT Cannon, LLC | 5 A | Metal | Aluminum Alloy | Threaded | Free Hanging (In-Line) | Plug Female Sockets | A | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | 4 | 500 VAC | 50 µin | 1.27 µm | 8-4 | |||||||
ITT Cannon, LLC | 13 A | Thermoplastic | Metal | Aluminum Alloy | Threaded | Free Hanging (In-Line) | Copper Alloy | Silver | Plug Female Sockets | N (Normal) | Crimp | Electroless Nickel | Shielded | -65 ░C | 175 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 4 | 50 µin | 1.27 µm | 11-4 | ||||

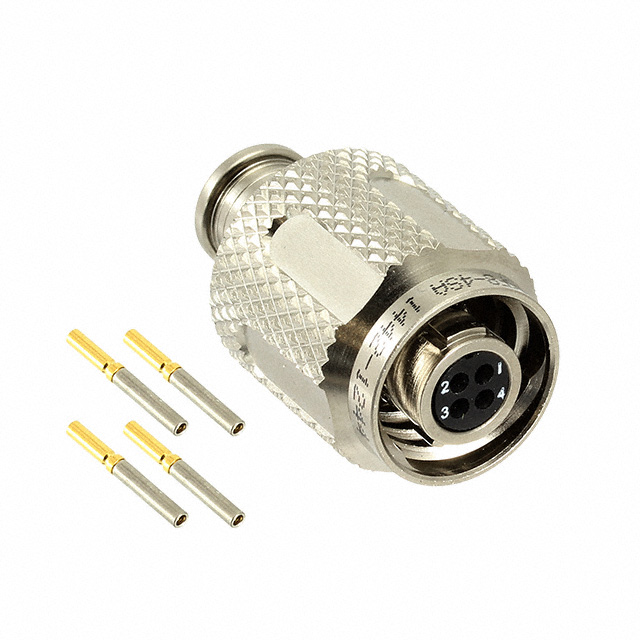

ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | Threaded | Panel Mount | Copper Alloy | Silver | Receptacle Female Sockets | N (Normal) | Crimp | Electroless Nickel | Shielded | -65 ░C | 175 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 4 | Bulkhead - Front Side Nut | 50 µin | 1.27 µm | 8-4 | |||
ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | 12 | 26 | Threaded | Panel Mount | Copper Alloy | Olive Drab | Receptacle Male Pins | C | Crimp | Olive Drab Cadmium | Shielded | -55 C | 150 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 26 | 500 VAC | Bulkhead - Front Side Nut | |||
ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | 9 | 10 | Threaded | Free Hanging (In-Line) | Copper Alloy | Silver | Plug Male Pins | B | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 10 | 500 VAC | ||||

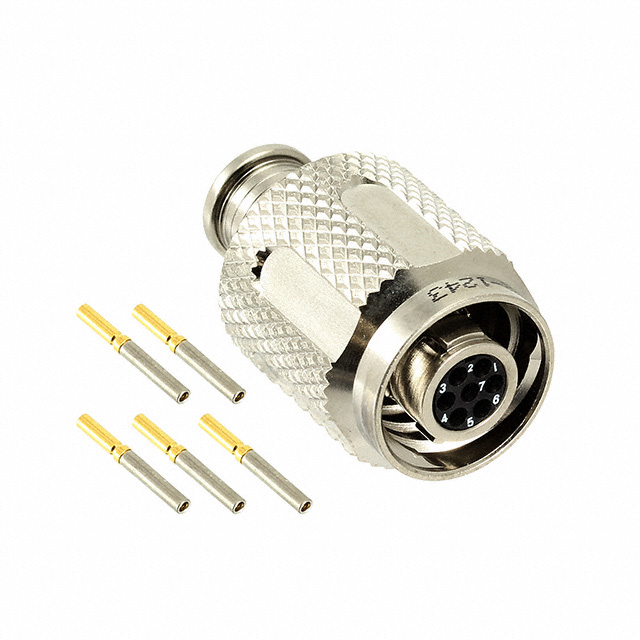

 ITT Cannon, LLC | 5 A | Metal | Aluminum Alloy | 8 | 7 | Threaded | Free Hanging (In-Line) | Plug Female Sockets | A | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | 7 | 500 VAC | 50 µin | 1.27 µm | ||||||

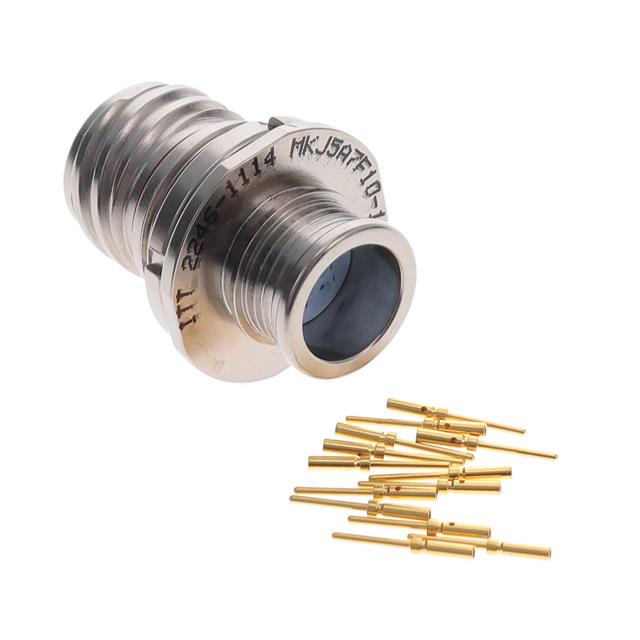

 ITT Cannon, LLC | 5 A | Thermoplastic | Metal | Aluminum Alloy | 10 | 13 | Threaded | Panel Mount | Copper Alloy | Silver | Receptacle Male Pins | A | Crimp | Electroless Nickel | Shielded | -55 C | 150 °C | Gold | Environment Resistant | Aerospace Communication Systems Industrial Instrumentation Medical | 13 | 500 VAC | Bulkhead - Front Side Nut |
