LZC-70 Series

Catalog

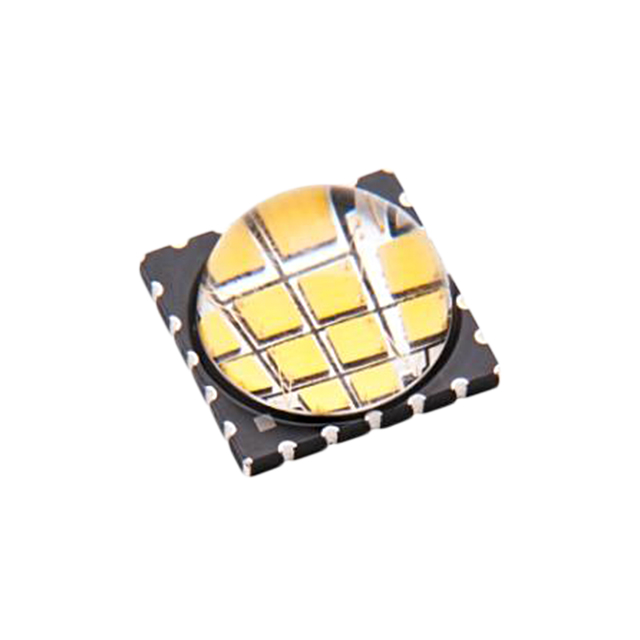

LED MOD LUXIGEN WH STARBRD

Part	Configuration	Light Emitting Surface (LES) [diameter]	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [diameter]	Type	Height [z]	CRI (Color Rendering Index)	Viewing Angle	Temperature - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Lens Type	Wavelength [Max]	Wavelength [Min]	Wavelength	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
ams-OSRAM USA INC. LZC-70GW00-0030	Starboard	8.2 mm	3-Step MacAdam Ellipse	3000 K	38.8 V	Warm White	28.3 mm	LED Module	6.9 mm	98	110 °	25 °C	1696 lm	1085 lm	1 A	Domed
ams-OSRAM USA INC. LZC-70UB00-00U5	Starboard	8.2 mm			44 V	Violet	28.28 mm	LED Module	7.1 mm		115 °	25 °C			1 A	Domed	395 nm	390 nm	393 nm
ams-OSRAM USA INC. LZC-70WW00-0035	Starboard	8.2 mm		3500 K	42 V	Warm White	28.28 mm	LED Module	7.1 mm	85	110 °	25 °C	2120 lm	1085 lm	1 A	Domed				55 lm/W	1603 lm
ams-OSRAM USA INC. LZC-70CW00-0055	Starboard	8.2 mm		5500 K	42 V	Cool White	28.28 mm	LED Module	7.1 mm	70	110 °	25 °C	2120 lm	1696 lm	1 A	Domed				65 lm/W	1908 lm
ams-OSRAM USA INC. LZC-70CW0R-0055	Starboard	8.2 mm		5500 K		Cool White	28.3 mm	LED Module	6.9 mm	70	110 °	25 °C			1 A	Domed				97 lm/W	2554 lm
ams-OSRAM USA INC. LZC-70WW00-0227	Starboard	8.2 mm		2700 K	42 V	Warm White	28.28 mm	LED Module	7.1 mm	85	110 °	25 °C	2120 lm	1085 lm	1 A	Domed				55 lm/W	1603 lm
ams-OSRAM USA INC. LZC-70WW0R-0030	Starboard	8.2 mm		3000 K		Warm White	28.3 mm	LED Module	6.9 mm	85	110 °	25 °C			1 A	Domed				70 lm/W	1854 lm
ams-OSRAM USA INC. LZC-70SW00-0000	Starboard	8.2 mm		5300 K	38.8 V	Cool White	28.3 mm	LED Module	6.9 mm	88	110 °	25 °C	2120 lm	1357 lm	1 A	Domed				64 lm/W
ams-OSRAM USA INC. LZC-70WW00-0027	Starboard	8.2 mm		2700 K	42 V	Warm White	28.28 mm	LED Module	7.1 mm	85	110 °	25 °C	2120 lm	1085 lm	1 A	Domed				55 lm/W	1603 lm
ams-OSRAM USA INC. LZC-70NW0R-0040	Starboard	8.2 mm		4000 K		Neutral White	28.3 mm	LED Module	6.9 mm	82	110 °	25 °C	2120 lm	1696 lm	1 A	Domed				72 lm/W	1908 lm
