FGN.2F Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 19POS GOLD CRIMP
| Part | Current Rating (Amps) | Orientation | Contact Finish - Mating | Ingress Protection | Insert Material | Shell Finish | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Material | Shell Material | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Cable Opening | Cable Opening | Termination | Connector Type | Primary Material | Fastening Type | Mounting Type | Shell Size - Insert | Material Flammability Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

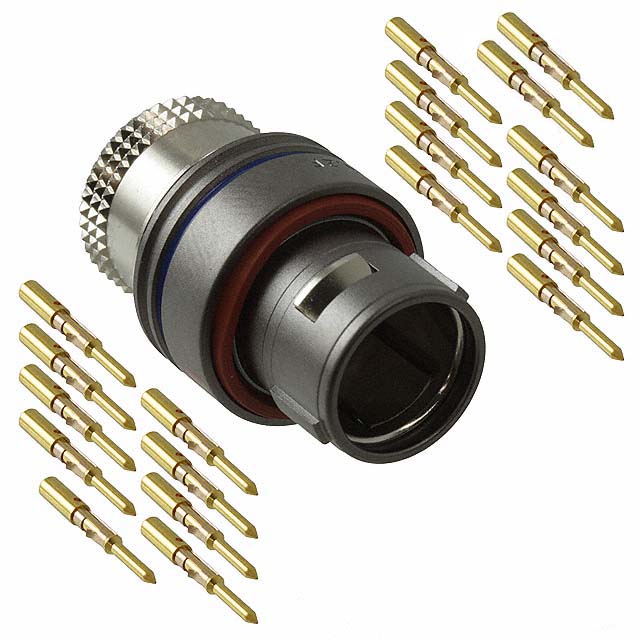

 LEMO | 5 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Nickel | 39.4 µin | 1 µm | Brass | Aluminum Alloy | Shielded | -15 °C | 200 °C | Gray | 19 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 319 | UL94 V-0 | Aerospace |
 LEMO | 7 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Chrome | 39.4 µin | 1 µm | Brass | Brass | Shielded | -55 C | 200 °C | Silver | 12 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 312 | UL94 V-0 | Aerospace |
LEMO | 8 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Chrome | 39.4 µin | 1 µm | Brass | Brass | Shielded | -55 C | 200 °C | Silver | 10 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 310 | UL94 V-0 | Aerospace |
LEMO | 5 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Chrome | 39.4 µin | 1 µm | Brass | Brass | Shielded | -55 C | 200 °C | Silver | 19 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 319 | UL94 V-0 | Aerospace |

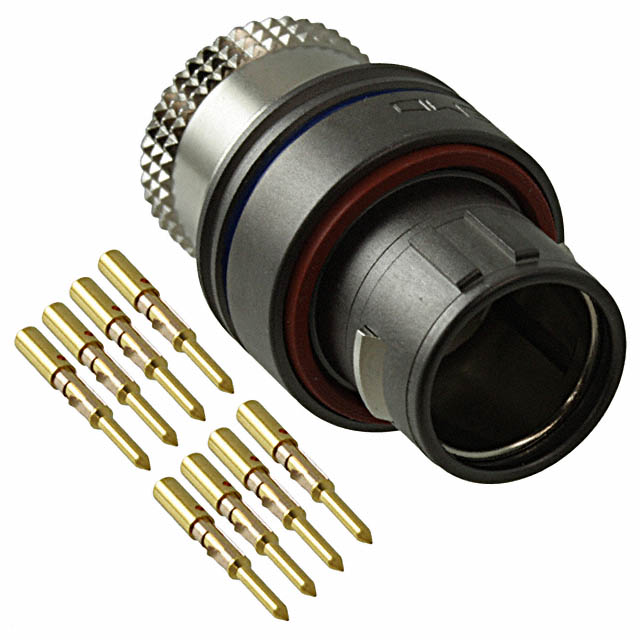

 LEMO | 10 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Nickel | 39.4 µin | 1 µm | Brass | Aluminum Alloy | Shielded | -15 °C | 200 °C | Gray | 8 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 308 | UL94 V-0 | Aerospace |
LEMO | 8 A | N (Normal) | Gold | IP67 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Nickel | 39.4 µin | 1 µm | Brass | Aluminum Alloy | Shielded | -15 °C | 200 °C | Gray | 10 | 0.551 " | 14 mm | Crimp | Plug Male Pins | Metal | Push-Pull | Free Hanging (In-Line) | 310 | UL94 V-0 | Aerospace |
