DRV8711 Series
Manufacturer: Texas Instruments
Beta
⌘K

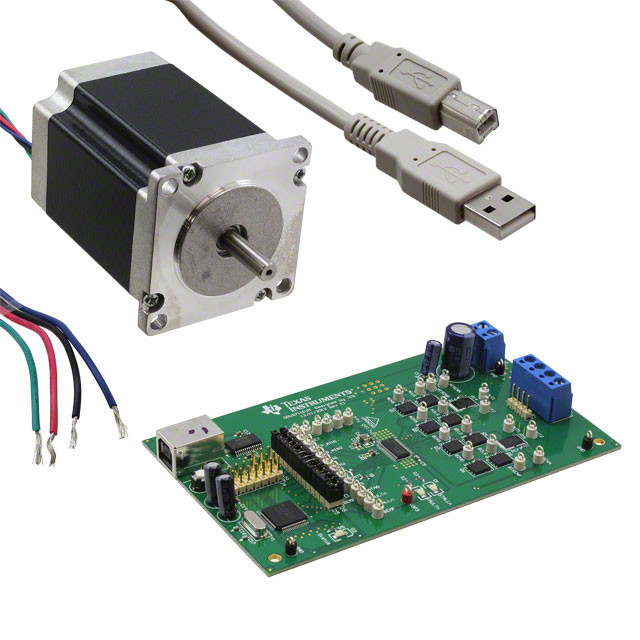

EVAL BOARD FOR DRV8711
| Part | Contents | Type | Secondary Attributes | Supplied Contents | Utilized IC / Part | For Use With/Related Products | Accessory Type | Applications | Mounting Type | Package / Case | Package / Case | Function | Supplier Device Package | Motor Type - AC, DC | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Motor Type - Stepper | Step Resolution [Max] | Step Resolution [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Accessories Board(s) Cable(s) | Power Management | Graphical User Interface (GUI) | Accessories Board(s) Cable(s) | DRV8711 | ||||||||||||||||||
 Texas Instruments | LaunchPad™ | Interface Board | |||||||||||||||||||||

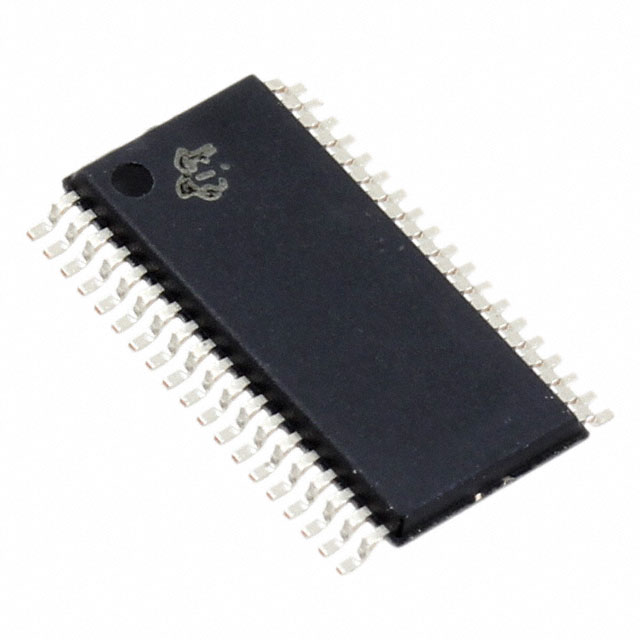

 Texas Instruments | General Purpose | Surface Mount | 0.173 in 4.4 mm | 38-PowerTFSOP | Controller - Commutation Direction Management | 38-HTSSOP | Brushed DC | 52 V | 8 V | Pre-Driver - Half Bridge (4) | 85 °C | -40 °C | SPI Step/Direction | Bipolar | 1 | 0.00390625 |
