WR9HA1200 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 5V 6W
| Part | Power (Watts) | Standard Number | Form | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | No Load Power Consumption | Applications | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Approval Agency | Input Type | Output Connector | Efficiency | Cord Length | Cord Length | Output Connector [x] | Output Connector [diameter] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

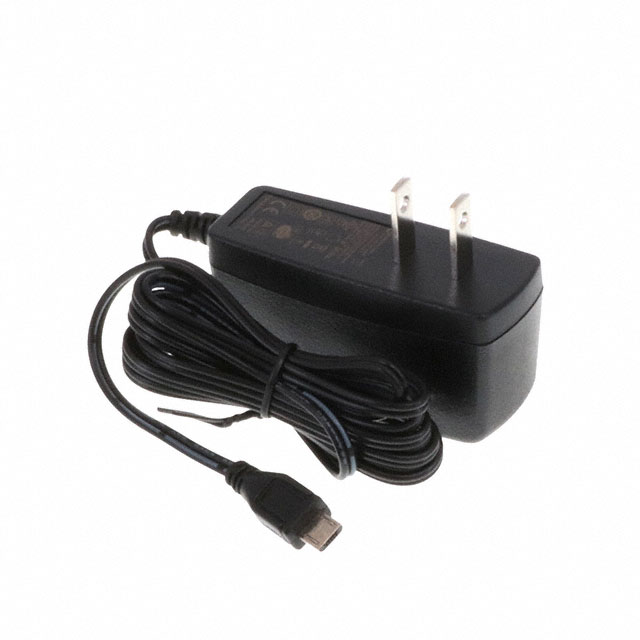

 GlobTek, Inc. | 6 W | 60950-1 | Wall Mount | 1 " | 25.5 mm | 2.62 " | 66.5 mm | 2.02 " | 51.3 mm | 75 mW | ITE (Commercial) | North America | 264 VAC | 90 VAC | NEMA 1-15P | 5 V | 40 °C | 0 °C | 1.2 A | CB cULus EAC LPS PSE UkrSEPRO VCCI | Fixed Blade | USB Micro | Level VI | 1.5 m | 59 in | |||

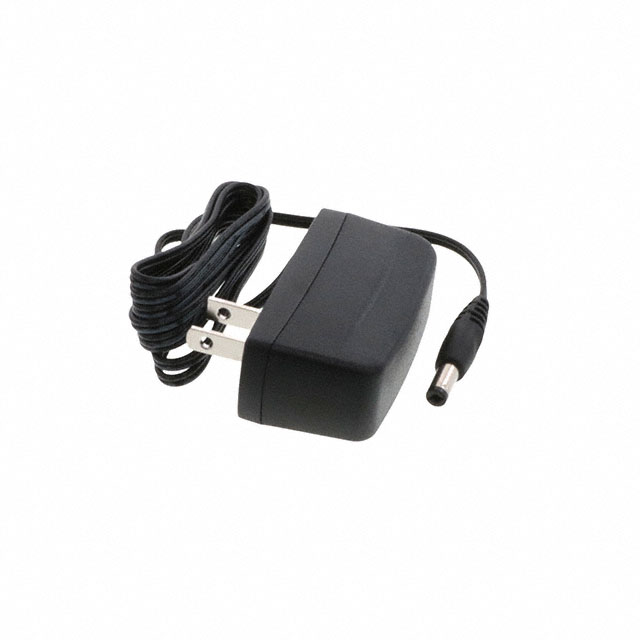

 GlobTek, Inc. | 6 W | 60950-1 | Wall Mount | 1 " | 25.5 mm | 2.62 " | 66.5 mm | 2.02 " | 51.3 mm | 75 mW | ITE (Commercial) | North America | 264 VAC | 90 VAC | NEMA 1-15P | 5 V | 40 °C | 0 °C | 1.2 A | CB cULus EAC LPS PSE UkrSEPRO VCCI | Fixed Blade | Barrel Plug | Level VI | 1.53 m | 60.2 in | 11 mm | 2.1 mm 5.5 mm | Positive Center |
