NPRN064 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

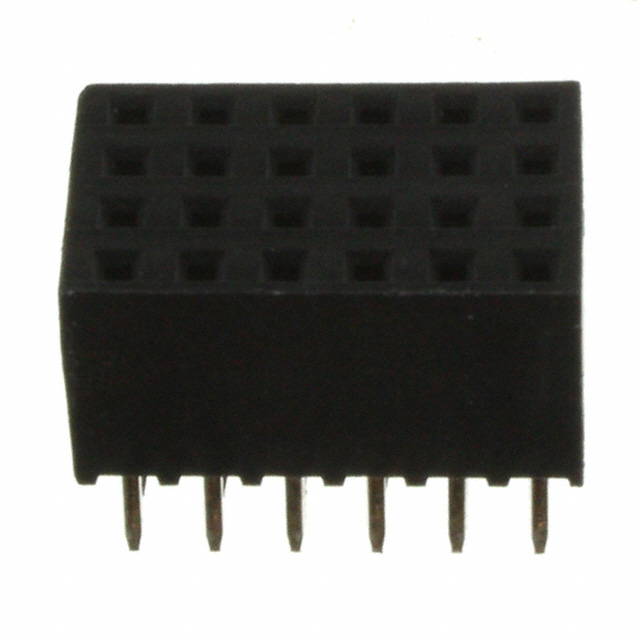

CONN HDR 24POS 0.079 GOLD PCB
| Part | Insulation Material | Contact Shape | Contact Material | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Contact Type | Number of Positions | Contact Finish - Mating | Insulation Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Phosphor Bronze | 2.4 mm | 0.094 in | -40 C | 105 ░C | 2 A | Solder | Header | 0.51 µm | 20 µin | 6.35 mm | 0.25 in | Push-Pull | Tin | All | 0.079 " | 2 mm | 2 mm | 0.079 in | Through Hole | Forked | 24 | Gold | Black | UL94 V-0 |
