9354-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Termination	Contact Finish	Socket Depth	Socket Depth	Tail Type	Contact Material
Mill-Max Manufacturing Corp. 9354-0-15-80-18-14-10-0	-55 C	125 °C	1.8 mm	0.071 in	0.25 Ám	10 Áin	0.17 in	4.32 mm	2.31 mm	0.091 "	1.37 mm	0.054 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Solder	Gold	4.32 mm	0.17 in	No Tail	Beryllium Copper

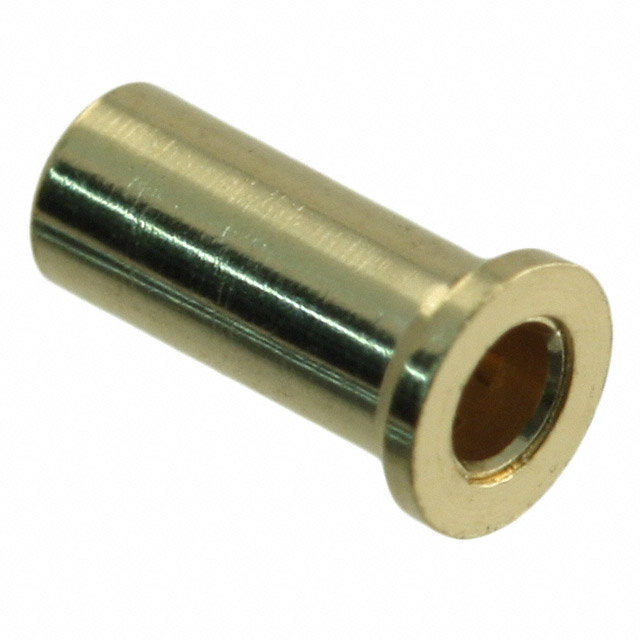

Mill-Max Manufacturing Corp. 9354-0-15-15-18-27-10-0	-55 C	125 °C	1.8 mm	0.071 in	0.76 Ám	30 Áin	0.17 in	4.32 mm	2.31 mm	0.091 "	1.37 mm	0.054 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Solder	Gold	4.32 mm	0.17 in	No Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 9354-0-15-15-18-14-10-0	-55 C	125 °C	1.8 mm	0.071 in	0.25 Ám	10 Áin	0.17 in	4.32 mm	2.31 mm	0.091 "	1.37 mm	0.054 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Solder	Gold	4.32 mm	0.17 in	No Tail	Beryllium Copper
