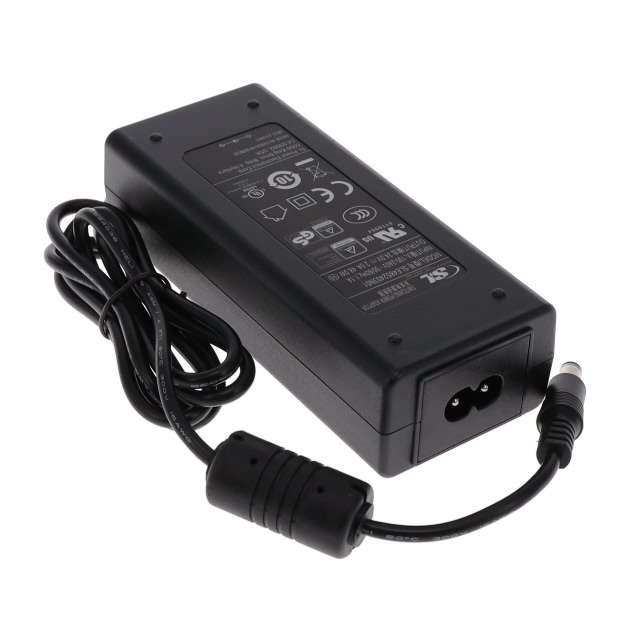

SLE48S2403 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 48W

Part	Power (Watts)	Region Utilized	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Connector	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Current - Output (Max) [Max]	Approval Agency	Standard Number	Cord Length	Cord Length	Polarization	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]
SL POWER / Advanced Energy SLE48S2403N01	48 W	International	Desktop (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C8	Cord (Sold Separately)	51 mm	122 mm	2.01 "	31.5 mm	1.24 "	4.8 in	CoC Tier 2 Level VI	264 VAC	90 VAC	ITE (Commercial) Medical	2 A	CB CCC CE CSA cULus cURus GS KC TUV UL	60601-1; 62368-1	1.5 m	59 in	Positive Center	24 V	40 °C	0 °C
