T40120 Series

Catalog

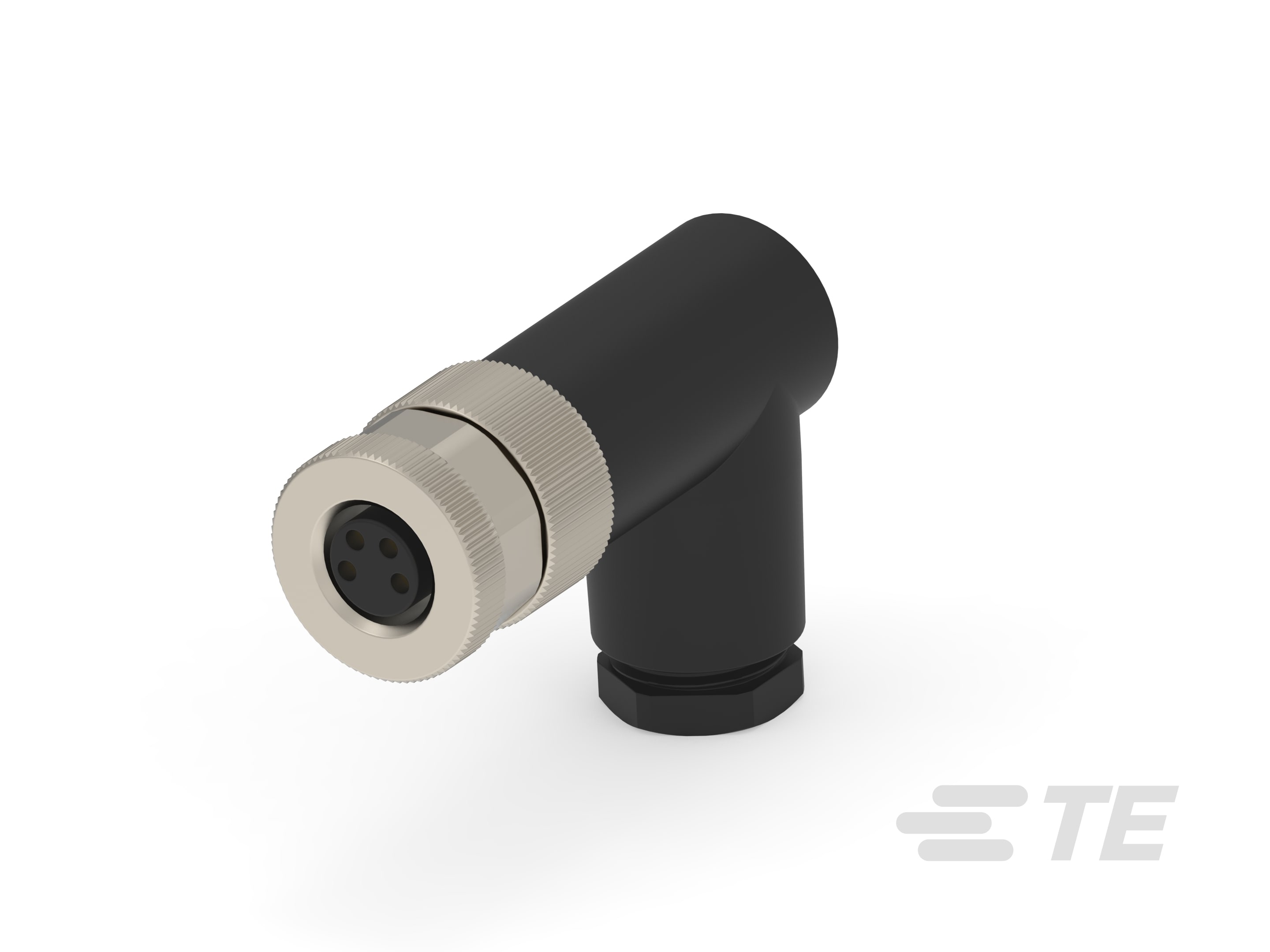

SENSOR CONNECTOR, M8, FEMALE, 4 POSITIONS, SCREW SOCKET, RIGHT ANGLE CABLE MOUNT

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Orientation	Color	Contact Finish - Mating	Mounting Type	Voltage Rating	Connector Type	Primary Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Ingress Protection	Features	Termination	Current Rating (Amps)	Fastening Type	Shell Size - Insert	Shell Finish	Backshell Material, Plating	Insert Material [custom]	Insert Material [custom]	Cable Opening [Min]	Cable Opening [Max]	Shielding
TE Connectivity AMP Connectors T4012008041-000	0.076 µm	3 µin	Automation Control Industrial Telecommunications	A	Silver	Gold	Free Hanging (In-Line) Right Angle	30 VDC	Receptacle Female Sockets	Metal	Brass	85 °C	-40 C	4	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Screw	3 A	Threaded	M8-4	Nickel
TE Connectivity AMP Connectors T4012008031-000	0.076 µm	3 µin	Automation Control Industrial Telecommunications	A	Silver	Gold	Free Hanging (In-Line) Right Angle	60 VDC	Receptacle Female Sockets	Metal	Brass	85 °C	-40 C		IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Screw	3 A	Threaded	M8-3	Nickel	Polybutylene Terephthalate (PBT)	Nylon	Polyamide (PA)	0.138 " 3.5 mm	0.189 in 4.8 mm	Unshielded
