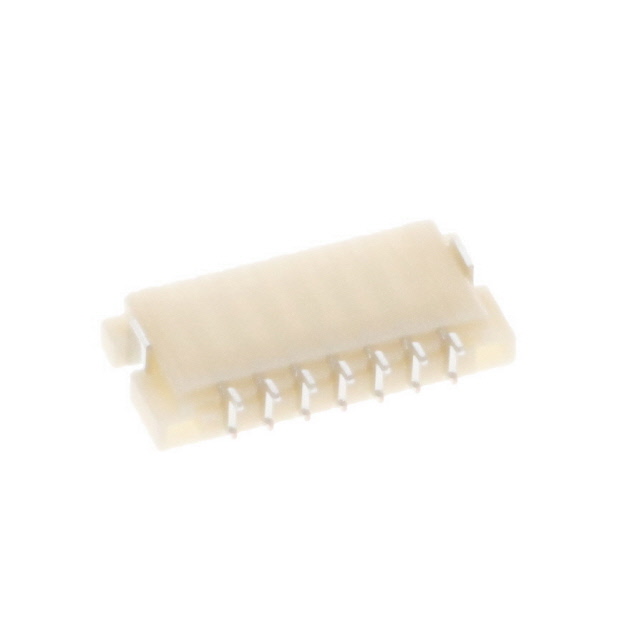

SM07B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 7POS 1MM
| Part | Insulation Color | Insulation Material | Features | Material Flammability Rating | Contact Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Post | Number of Positions Loaded | Number of Positions | Voltage Rating | Connector Type | Shrouding | Mounting Type | Number of Rows | Contact Type | Contact Shape | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Nylon Polyamide (PA) | Solder Retention | UL94 V-0 | Phosphor Bronze | Push-Pull | 85 °C | -25 °C | Board to Cable/Wire | 1 mm | 0.039 in | Solder | Tin | All | 7 | 50 V | Header | Shrouded - 4 Wall | Right Angle Surface Mount | 1 | Outer Shroud Contact | Rectangular | 0.069 in | 1.75 mm |
