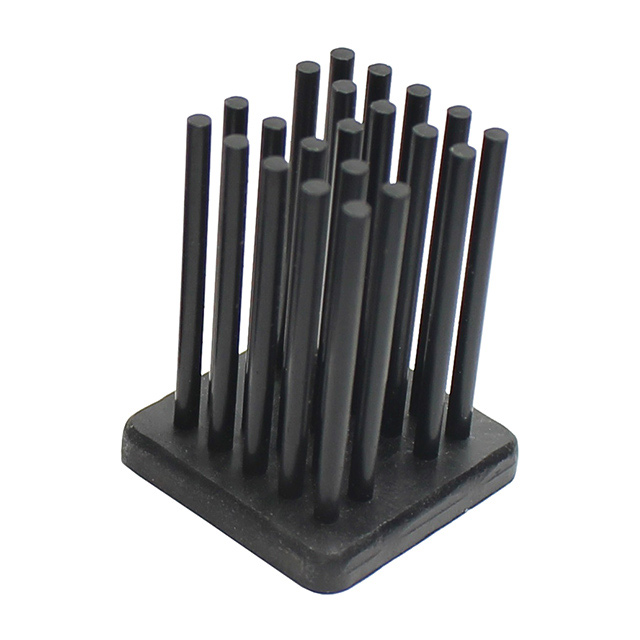

APR19 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Width	Width	Shape	Type	Package Cooled	Fin Height [custom]	Fin Height [custom]	Thermal Resistance @ Forced Air Flow	Material Finish	Thermal Resistance @ Natural	Material	Length	Length	Attachment Method	Fin Height [z]	Fin Height [z]	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height
CTS Thermal Management Products APR19-19-23CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA	22.61 mm	0.89 in	5.58 °C/W	Black Anodized	14.19 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)
CTS Thermal Management Products APR19-19-28CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			5.11 °C/W	Black Anodized	13.15 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)	27.6 mm	1.087 in
CTS Thermal Management Products APR19-19-15CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			6.6 °C/W	Black Anodized	15.26 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)			14.6 mm	0.575 in
CTS Thermal Management Products APR19-19-12CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			6.9 °C/W	Black Anodized	14.3 °C/W	Aluminum	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)				0.457 in	11.6 mm
CTS Thermal Management Products APR19-19-21CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			5.9 °C/W	Black Anodized	14.53 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)			20.6 mm			0.811 in
CTS Thermal Management Products APR19-19-18CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			5.9 °C/W	Black Anodized	14.56 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)			17.6 mm			0.693 in
CTS Thermal Management Products APR19-19-33CB/A01	24 Months	0.732 "	18.6 mm	Pin Fins Square	Top Mount	ASIC BGA CPU LGA			4.71 °C/W	Black Anodized	12.45 °C/W	Aluminum Alloy	18.6 mm	0.732 in	Thermal Tape Adhesive (Included)			32.6 mm			1.283 in
