2842150 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,BRK HDR,DRRT,2.8,0.1AU,T

Part	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Contact Type	Contact Finish - Post	Mounting Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Connector Type	Current Rating (Amps)	Shrouding	Contact Shape	Material Flammability Rating	Number of Positions	Insulation Color	Number of Rows	Insulation Height	Insulation Height
TE Connectivity Raychem Cable Protection 2842150-6	0.079 in	2 mm	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	All	Thermoplastic	Male Pin	Tin	Through Hole Right Angle	125 VAC	0.079 in	2 mm	Gold	125 °C	-40 °C	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Push-Pull	Breakaway Header	2 A	Unshrouded	Square	UL94 V-0	12	Black	2	1.5 mm	0.059 "

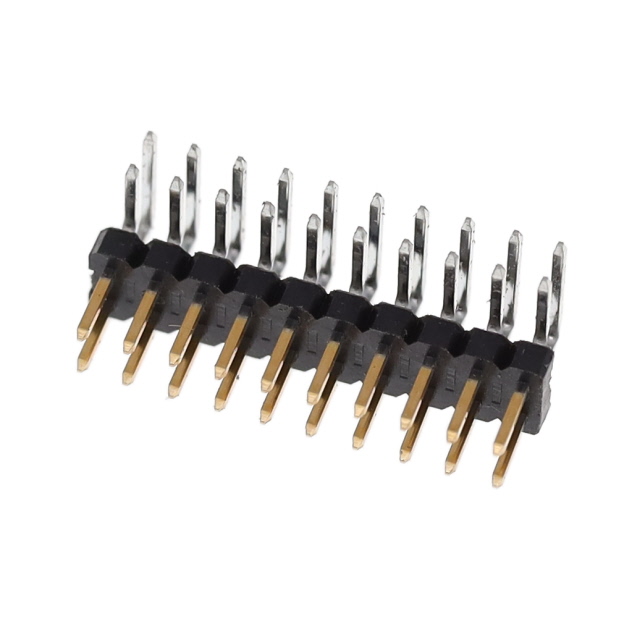

TE Connectivity Raychem Cable Protection 1-2842150-0	0.079 in	2 mm	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	All	Thermoplastic	Male Pin	Tin	Through Hole Right Angle	125 VAC	0.079 in	2 mm	Gold	125 °C	-40 °C	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Push-Pull	Breakaway Header	2 A	Unshrouded	Square	UL94 V-0	20	Black	2	1.5 mm	0.059 "

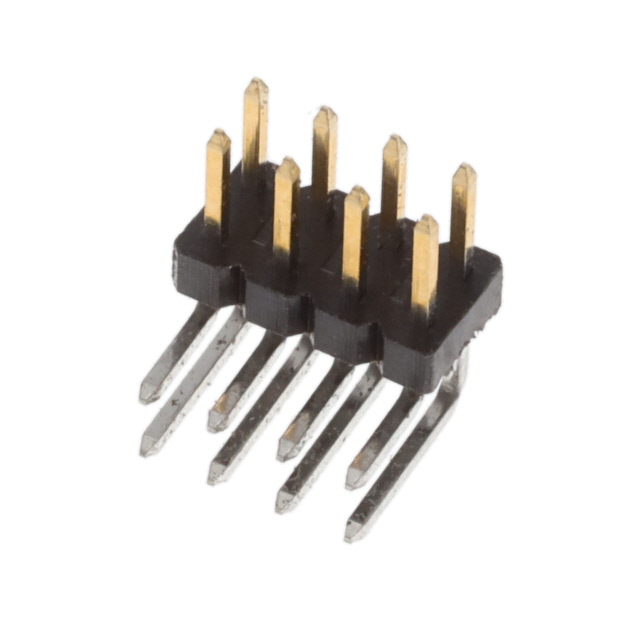

TE Connectivity Raychem Cable Protection 2842150-4	0.079 in	2 mm	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	All	Thermoplastic	Male Pin	Tin	Through Hole Right Angle	125 VAC	0.079 in	2 mm	Gold	125 °C	-40 °C	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Push-Pull	Breakaway Header	2 A	Unshrouded	Square	UL94 V-0	8	Black	2	1.5 mm	0.059 "

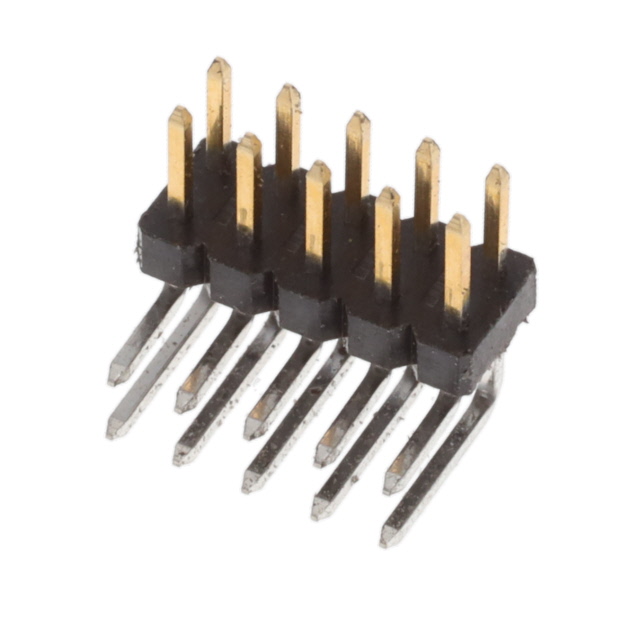

TE Connectivity Raychem Cable Protection 2842150-5	0.079 in	2 mm	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	All	Thermoplastic	Male Pin	Tin	Through Hole Right Angle	125 VAC	0.079 in	2 mm	Gold	125 °C	-40 °C	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Push-Pull	Breakaway Header	2 A	Unshrouded	Square	UL94 V-0	10	Black	2	1.5 mm	0.059 "
