RR9KI2500 Series

Catalog

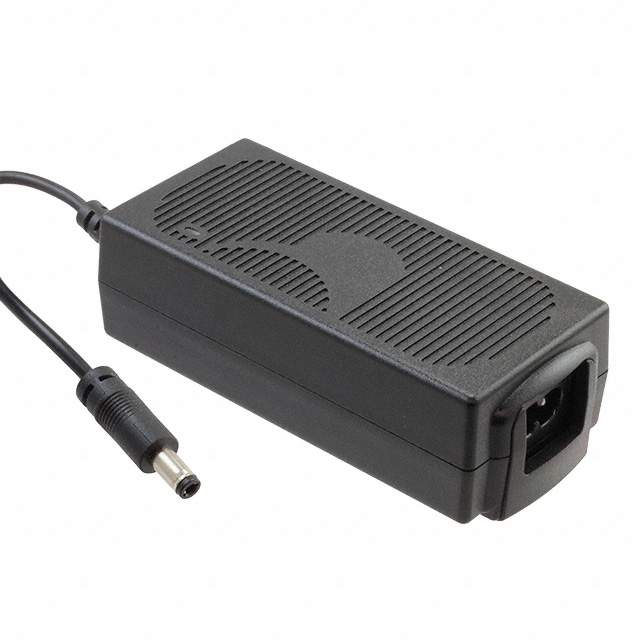

AC/DC DSKTP/WALL MT ADPT 24V 60W

Part	No Load Power Consumption	Input Connector	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Form	Region Utilized	Cord Length	Cord Length	Current - Output (Max) [Max]	Input Type	Efficiency	Polarization	Applications	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Output Connector [x]	Output Connector [diameter]
GlobTek, Inc. RR9KI2500LRPCIMR6B	150 mW	IEC 320-C8 Multi-Blade	5.5 mm	11 mm	Barrel Plug R/A	2.5 mm	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	BSMI CB CCC CE cETLus EAC ETL LPS PSE RCM UkrSEPRO UL VCCI	60 W	-20 ░C	40 °C	Desktop Wall Mount	International	1.5 m	59 in	2.5 A	Cord Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	Positive Center	Household Appliances ITE (Commercial) Medical	24 V	264 VAC	90 VAC
GlobTek, Inc. RR9KI2500CCPCIMR6B	150 mW	IEC 320-C8 Multi-Blade			Barrel Plug		36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	BSMI CB CCC CE cETLus EAC ETL LPS PSE RCM UkrSEPRO UL VCCI	60 W	-20 ░C	40 °C	Desktop Wall Mount	International	1.2 m	47.2 in	2.5 A	Cord Multi-Blade (Sold Separately)	Level VI	Positive Center	Household Appliances ITE (Commercial) Medical	24 V	264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	11 mm	2.1 mm 5.5 mm
