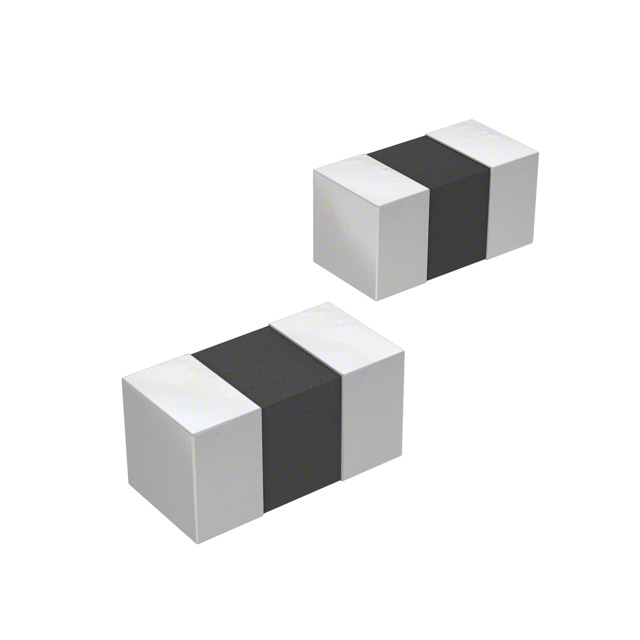

MU1608 Series

Catalog

FERRITE BEAD, 0603 [1608 METRIC], 220 OHM, 200 MA, MU SERIES, 0.3 OHM, ± 25%

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Filter Type	Impedance @ Frequency	Mounting Type	Package / Case	Package / Case	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]

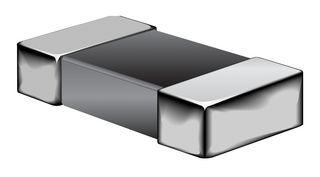

Bourns Inc. MU1608-221Y	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Power Signal Line	220 Ohms	Surface Mount	1608 Metric	0603	0.8 mm	-55 C	125 °C	200 mA	1	300 mOhm	0.039 in	1 mm
Bourns Inc. MU1608-471Y	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Power Signal Line	470 Ohms	Surface Mount	1608 Metric	0603	0.8 mm	-55 C	125 °C	350 mA	1	450 mOhm	0.039 in	1 mm
Bourns Inc. MU1608-151Y	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Power Signal Line	150 Ohms	Surface Mount	1608 Metric	0603	0.8 mm	-55 C	125 °C	600 mA	1	250 mOhm	0.039 in	1 mm
