SUCW31212 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-12V 24V 3.1W
| Part | Current - Output (Max) | Current - Output (Max) | Type | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output 2 | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Isolation | Efficiency | Mounting Type | Voltage - Input (Min) [Min] | Applications | Voltage - Output 1 | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

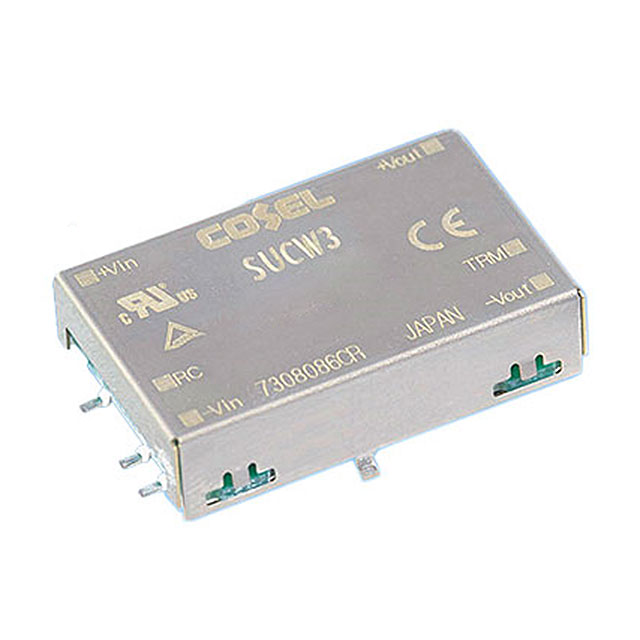

 Cosel USA, Inc. | 130 mA | 130 mA | Isolated Module | 18 V | 2 | -12 V | 7-SMD Module | -40 °C | 85 °C | 25 mm | 7 mm | 0.28 " | 0.98 " | 15.5 mm | 0.61 in | 500 V | 76 % | Surface Mount | 9 V | ITE (Commercial) | 12 V | 3.1 W | |
Cosel USA, Inc. | 130 mA | 130 mA | Isolated Module | 18 V | 2 | -12 V | 7-SMD Module | -40 °C | 85 °C | 25 mm | 7 mm | 0.28 " | 0.98 " | 15.5 mm | 0.61 in | 500 V | 76 % | Surface Mount | 9 V | ITE (Commercial) | 12 V | 3.1 W | |

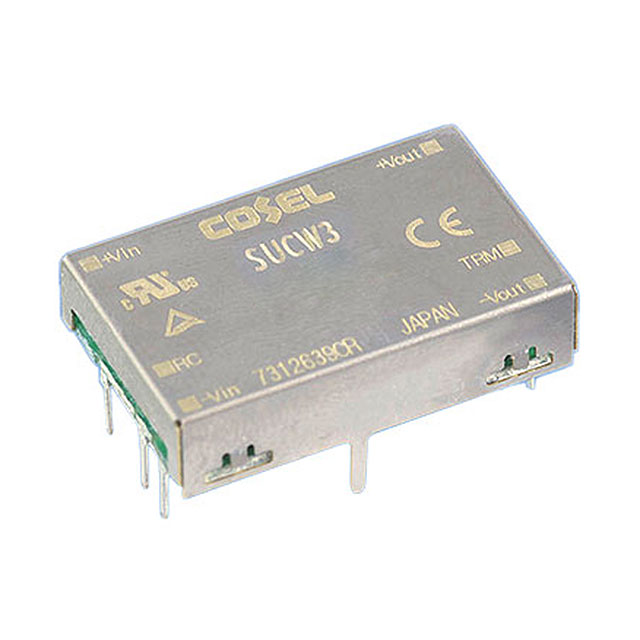

 Cosel USA, Inc. | 130 mA | 130 mA | Isolated Module Conformal Coated | 18 V | 2 | -12 V | 7-DIP Module | -40 °C | 85 °C | 25 mm | 7 mm | 0.28 " | 0.98 " | 15.5 mm | 0.61 in | 500 V | 76 % | Through Hole | 9 V | ITE (Commercial) | 12 V | 3.1 W | |
Cosel USA, Inc. | 130 mA | 130 mA | Isolated Module | 18 V | 2 | -12 V | 7-SMD Module | -40 °C | 85 °C | 25 mm | 7 mm | 0.28 " | 0.98 " | 15.5 mm | 0.61 in | 500 V | 76 % | Surface Mount | 9 V | ITE (Commercial) | 12 V | 3.1 W | |
Cosel USA, Inc. | 130 mA | 130 mA | Isolated Module | 18 V | 2 | -12 V | 7-DIP Module | -40 °C | 85 °C | 25 mm | 7 mm | 0.28 " | 0.98 " | 15.5 mm | 0.61 in | 500 V | 76 % | Through Hole | 9 V | ITE (Commercial) | 12 V | OCP Remote On/Off |
