696362 Series

Catalog

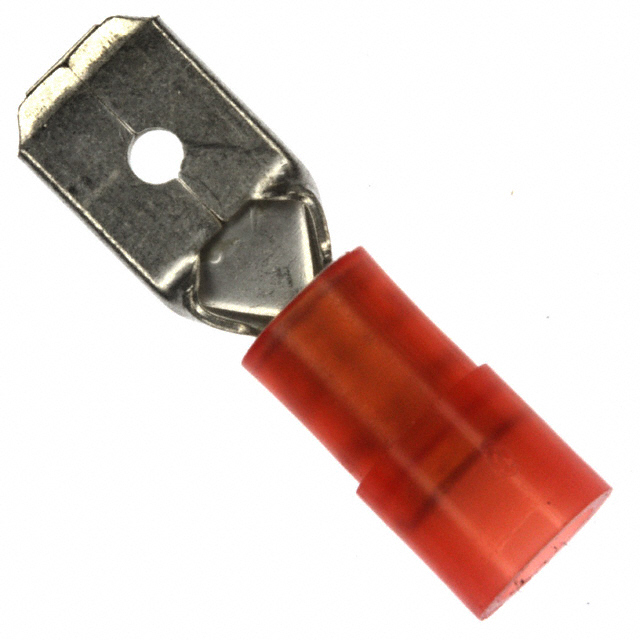

CONN QC TAB 18-22AWG 0.250 CRIMP

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Termination	Color	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Tab Width [x]	Tab Width [x]	Contact Finish	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Type	Tab Thickness	Tab Thickness
TE Connectivity AMP Connectors 8-696362-1	0.115 "	2.92 mm	2.03 mm	0.08 in	Free Hanging (In-Line)	Crimp	Red	Non-Mating End Insulated	22 AWG	17.5 AWG	Male	6.35 mm	0.25 in	Tin	Brass	23.14 mm	0.911 in	Standard	0.81 mm	0.032 in
TE Connectivity AMP Connectors 696362-1	0.115 "	2.92 mm	2.03 mm	0.08 in	Free Hanging (In-Line)	Crimp	Red	Non-Mating End Insulated	22 AWG	17.5 AWG	Male	6.35 mm	0.25 in	Tin	Brass	23.14 mm	0.911 in	Standard	0.81 mm	0.032 in
