09300100 Series

Manufacturer: HARTING

Catalog

HAN 10B BASE PANEL FOR CENTRAL LEVER ROHS COMPLIANT: NA

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Housing Finish	Style	Lock Location	Housing Material	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Size / Dimension [y]	Size / Dimension [z]

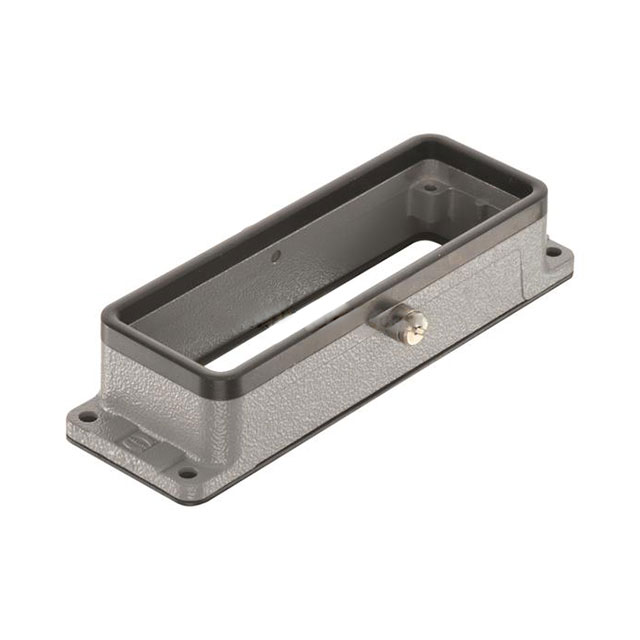

HARTING 09300100381	Gray	125 °C	-40 C	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Powder Coated	Bottom Entry	Locking Clip (1) on Hood	Aluminum Die Cast
HARTING 09300100297	Gray	125 °C	-40 C	Base - Box Mount	IP65 - Dust Tight Water Resistant	Powder Coated	Side Entry	Locking Clip (1) on Base Bottom	Aluminum Die Cast	3.701 " 94 mm	3.181 " 80.8 mm	2.244 in 57 mm	10B	PG21

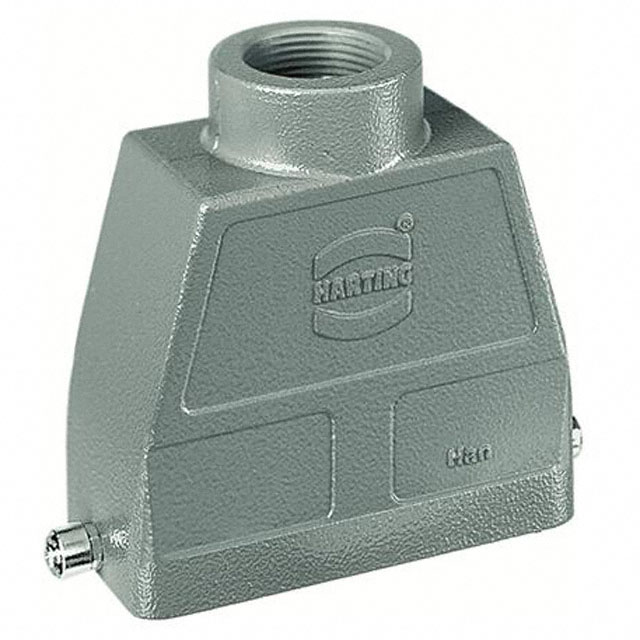

HARTING 09300100442	Gray	125 °C	-40 C	Hood	IP65 - Dust Tight Water Resistant	Powder Coated	Top Entry	Locking Clip (1) on Base Bottom	Aluminum Die Cast	72.6 mm	87 mm	43 mm	10B	PG21	3.425 in	1.693 "	2.858 in

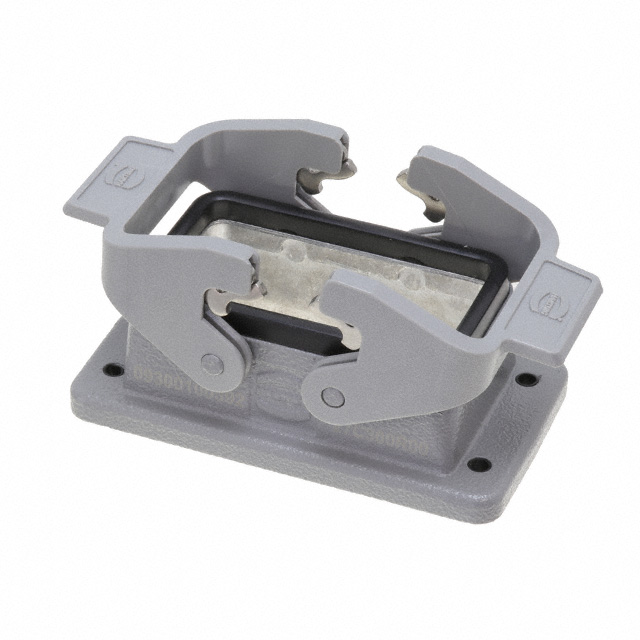

HARTING 09300100392	Gray	125 °C	-40 C	Base - Panel Mount	IP66 - Dust Tight Water Resistant	Powder Coated	Bottom Entry	Locking Clip (2) on Base Bottom	Aluminum Die Cast	98.6 mm	34.4 mm	55 mm	10B		1.354 in	2.165 in	3.882 "
HARTING 09300100262	Gray	125 °C	-40 C	Base - Box Mount	IP65 - Dust Tight Water Resistant	Powder Coated	Side Entry	Locking Clip (2) on Hood	Aluminum Die Cast	3.701 " 94 mm	3.181 " 80.8 mm	2.244 in 57 mm	10B	PG21

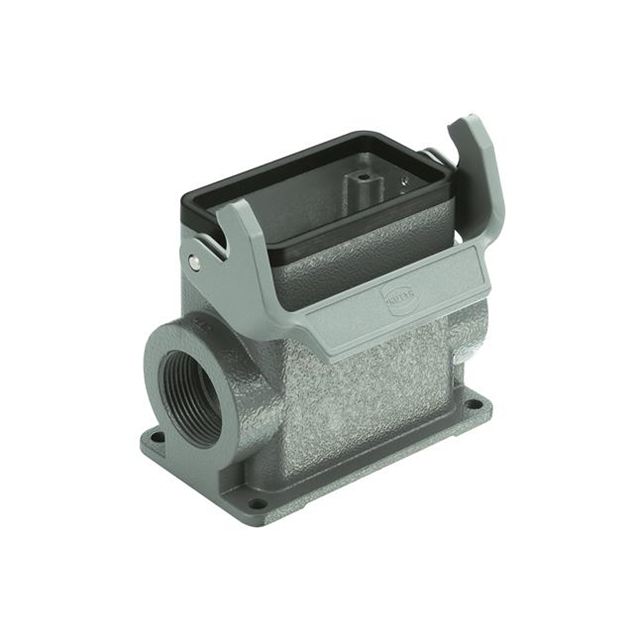

HARTING 09300100293	Gray	125 °C	-40 C	Base - Box Mount	IP65 - Dust Tight Water Resistant	Powder Coated	Side Entry	Locking Clip (1) on Base Bottom	Aluminum Die Cast	3.701 " 94 mm	3.181 " 80.8 mm	2.244 in 57 mm	10B	PG29				Feed Through

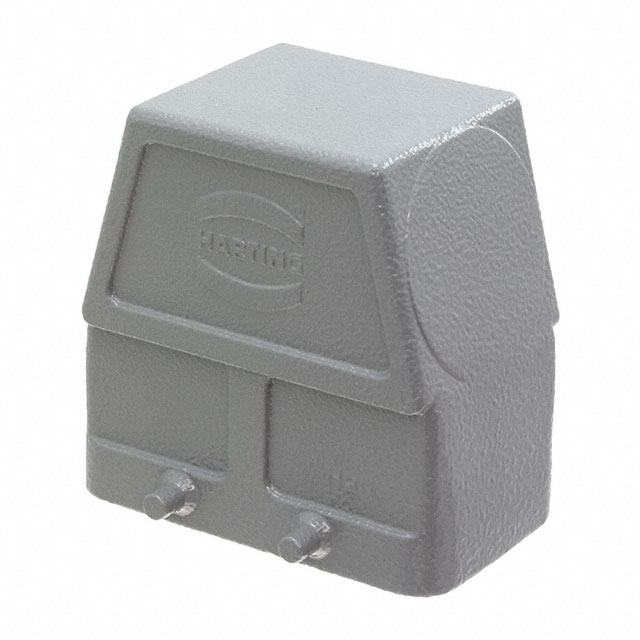

HARTING 09300100801	Gray	125 °C	-40 C	Hood	IP65 - Dust Tight Water Resistant	Powder Coated	Bottom Entry	Locking Clip (2) on Base Bottom	Aluminum Die Cast	72.6 mm	72 mm	43 mm	10B		2.835 "	1.693 "	2.858 in

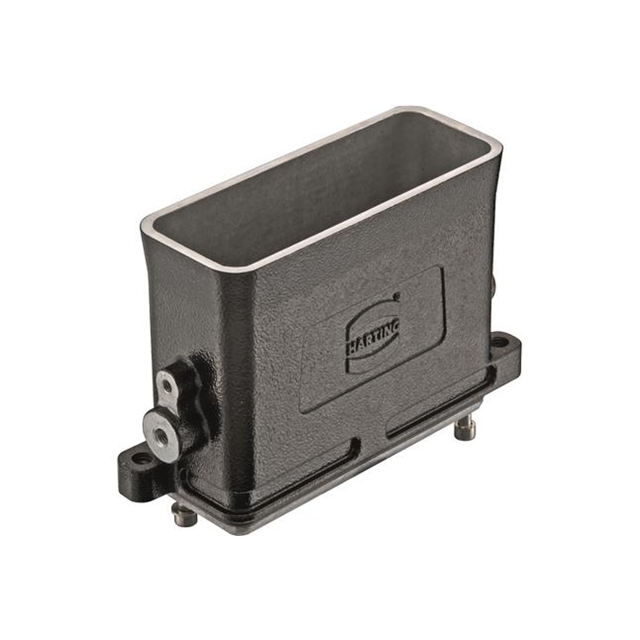

HARTING 09300100310				Base - Panel Mount			Bottom Entry	Locking Clip (2) on Hood		93 mm			10B		0.929 in	1.709 "	3.661 "		43.4 mm	23.6 mm
HARTING 09300100522	Gray	125 °C	-40 C	Hood	IP65 - Dust Tight Water Resistant	Powder Coated	Side Entry	Locking Clip (2) on Base Bottom	Aluminum Die Cast	72.6 mm	72 mm	43 mm	10B	PG21	2.835 "	1.693 "	2.858 in

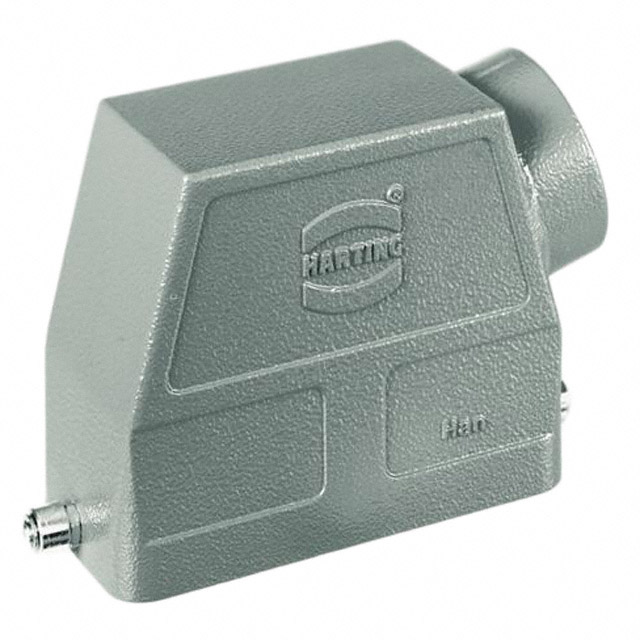

HARTING 09300100542	Gray	125 °C	-40 C	Hood	IP65 - Dust Tight Water Resistant	Powder Coated	Side Entry	Locking Clip (1) on Base Bottom	Aluminum Die Cast	72.6 mm	72 mm	43 mm	10B	PG21	2.835 "	1.693 "	2.858 in
