R19130 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

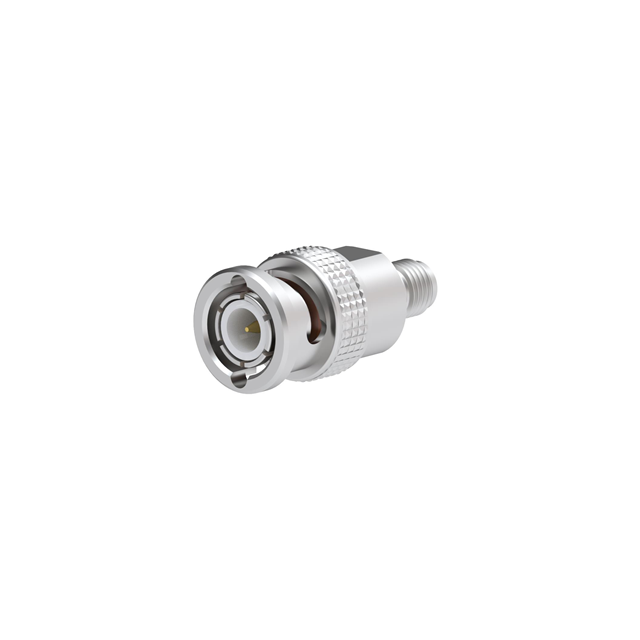

SMA FEMALE - BNC MALE STRAIGHT A
| Part | Dielectric Material | Center Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Impedance | Convert From (Adapter End) | Mounting Type | Frequency - Max [Max] | Adapter Series | Convert To (Adapter End) | Center Contact Plating | Fastening Type | Fastening Type | Adapter Type | Style | Conversion Type | Center Contact Finish | Connector Style | For Use With/Related Products | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Brass | -65 ░C | 165 °C | Nickel | 500 | 50 Ohms | BNC Plug Male Pin | Free Hanging (In-Line) | 4 GHz | BNC to SMA | SMA Jack Female Socket | Gold | Threaded | Bayonet Lock | Plug to Jack | Straight | Between Series | ||||
 Radiall USA, Inc. | Beryllium Copper Brass | Brass | Gold | Gold | SMA | SMA Jacks | Gold |
