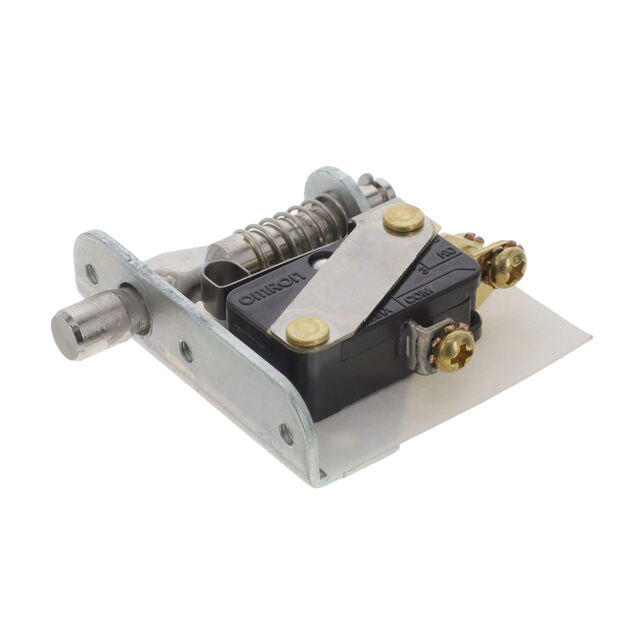

1VAP2 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT SPST-NO 15A 125V
| Part | Electrical Life | Pretravel | Pretravel | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Overtravel | Overtravel | Actuator Type | Mechanical Life | Operating Force | Ingress Protection | Current Rating (Amps) | Termination Style | Mounting Type | Circuit | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 25000 Steps | 0.236 " | 6 mm | Off-Mom | -25 °C | 80 °C | 125 V | 0.118 " | 3 mm | Push-Pull Plunger | 100000 Cycles | 1500 gf | IP00 | 15 A | Screw Terminal | Chassis Mount | SPST-NO | ||
 Omron Automation and Safety | 25000 Steps | 0.236 " | 6 mm | Off-Mom | -25 °C | 80 °C | 125 V | 0.118 " | 3 mm | Push-Pull Plunger | 100000 Cycles | 1500 gf | IP00 | 15 A | Screw Terminal | Chassis Mount | SPST-NO | ||
 Omron Automation and Safety | 25000 Steps | 0.172 " | 4.4 mm | On-Mom | -25 °C | 80 °C | 125 V | Push-Pull Plunger | 100000 Cycles | 1795 gf | IP00 | 15 A | Screw Terminal | Chassis Mount | SPDT | 0.079 " | 2 mm |
