725-027 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 27POS 0.100

Part	Termination Rows	Material - Insulation	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Card Type	Termination	Gender	Number of Positions/Bay/Row	Mounting Type	Read Out	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish
EDAC Inc. 725-027-545-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold

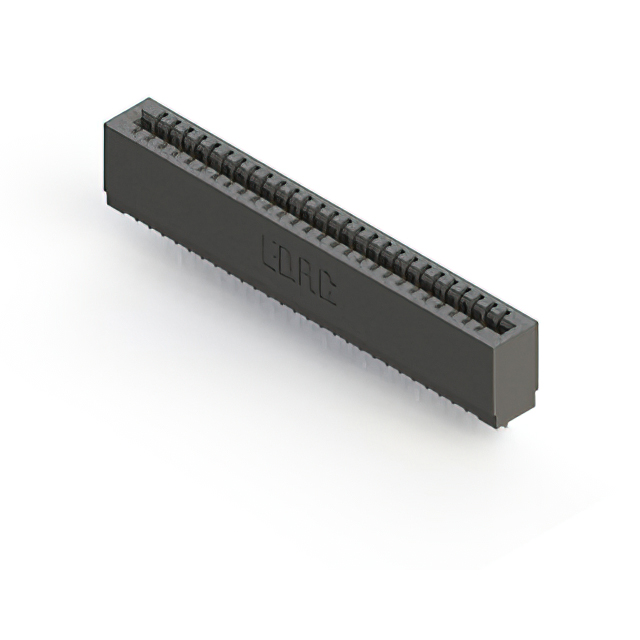

EDAC Inc. 725-027-541-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold

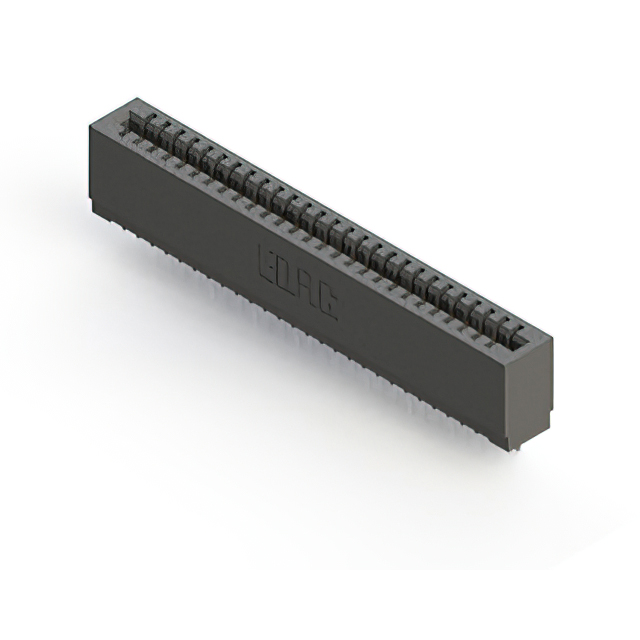

EDAC Inc. 725-027-540-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold
EDAC Inc. 725-027-525-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold

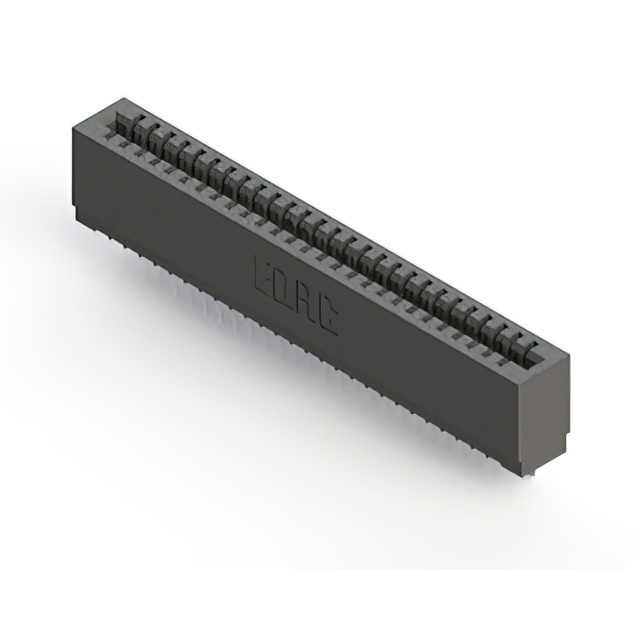

EDAC Inc. 725-027-522-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold
EDAC Inc. 725-027-520-101	1	Polyester Thermoplastic	Black	30 Áin	0.76 Ám	27	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	Press-Fit	Female	27	Through Hole	Single	1	Copper Alloy	-40 C	105 ░C	Cantilever	Gold
