32S206 Series
Manufacturer: Rosenberger
Beta
⌘K

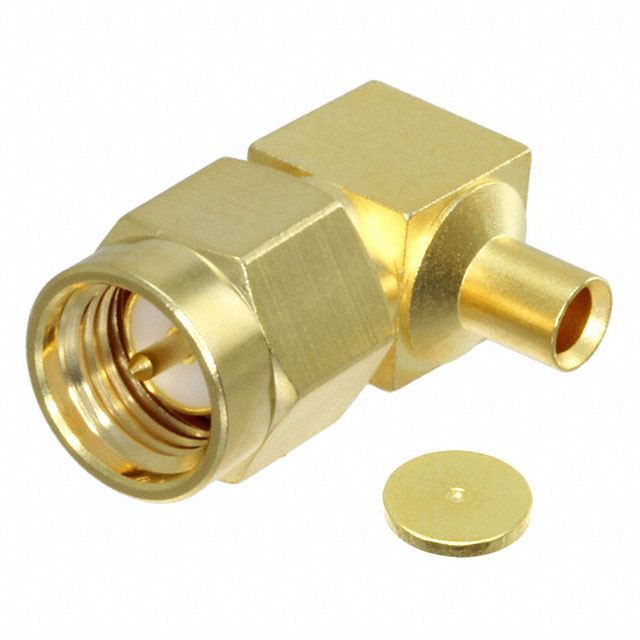

CONN SMA PLUG R/A 50OHM SOLDER
| Part | Includes | Voltage Rating | Mating Cycles | Body Material | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Shield Termination | Frequency - Max [Max] | Fastening Type | Connector Style | Housing Color | Number of Ports | Impedance | Center Contact Material | Cable Group | Contact Termination | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 End Cap | 480 V | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Solder | 12.4 GHz | Threaded | SMA | Gold | 1 | 50 Ohms | Brass | RG-405 (.085" Semi Rigid) | Solder | Plug Male Pin | Free Hanging (In-Line) Right Angle |
