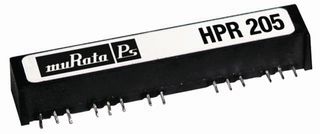

HPR4 Series

Catalog

DC DC CONVERTER +/-5V 750MW

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Power (Watts)	Voltage - Isolation	Package / Case	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Type	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 2	Current - Output (Max) [Max]

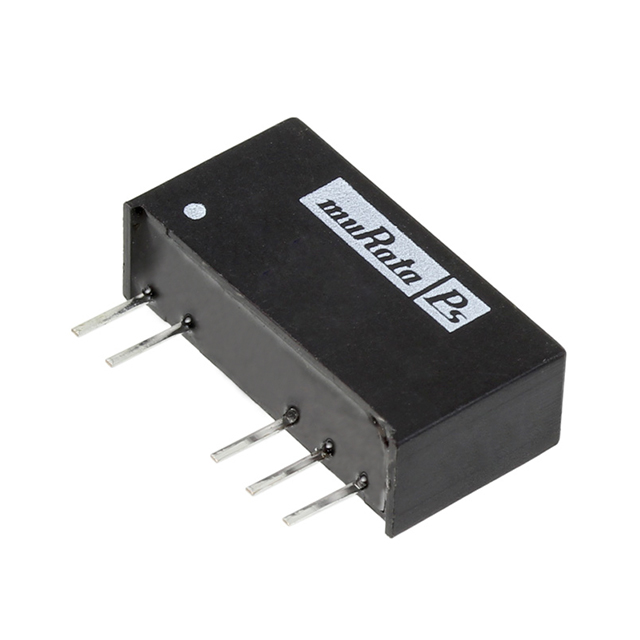

Murata Power Solutions Inc. HPR403C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	68 %	0.75 W	3000 V	7-SIP Module 5 Leads	5 V	5.5 V	75 mA	75 mA	100 °C	-40 °C	Through Hole	ITE (Commercial)	Isolated Module	4.5 V	2	-5 V
Murata Power Solutions Inc. HPR400C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	69 %	0.75 W	3000 V	7-SIP Module 4 Leads	5 V	5.5 V			100 °C	-40 °C	Through Hole	ITE (Commercial)	Isolated Module	4.5 V	1		150 mA
