391-057 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 57POS 0.100

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Material	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Finish	Number of Rows	Termination	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions
EDAC Inc. 391-057-520-104	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-521-108	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-521-107	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-522-104	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-521-102	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-522-101	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57				0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-524-107	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-522-108	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57

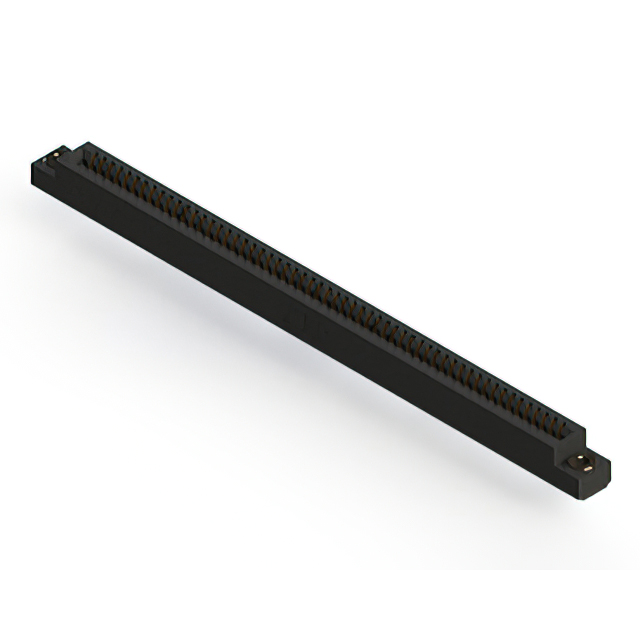

EDAC Inc. 391-057-520-103	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
EDAC Inc. 391-057-520-108	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	57	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Gold	1	Solder	Female	Single	0.25 Ám	10 Áin	Through Hole	57
