R12551 Series

Catalog

SMA / SQUARE FLANGE JACK RECEPTA

Part	Body Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Dielectric Material	Mating Cycles	Number of Ports	Connector Type	Features	Contact Termination	Frequency - Max [Max]	Connector Style	Shield Termination	Mounting Type	Mounting Feature	Fastening Type	Housing Color	Impedance	Center Contact Material

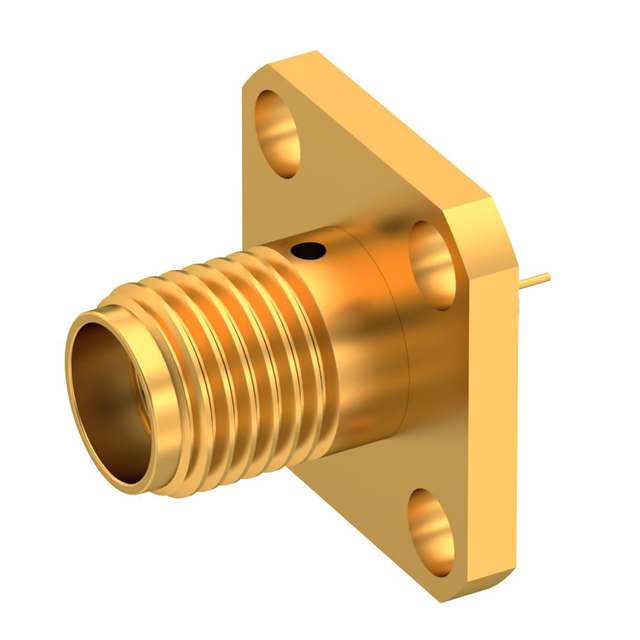

Radiall USA, Inc. R125513000	Gold	500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount Through Hole	Flange	Threaded	Gold	50 Ohms	Beryllium Copper
Radiall USA, Inc. R125512000W	Gold	500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount	Flange	Threaded	Gold	50 Ohms

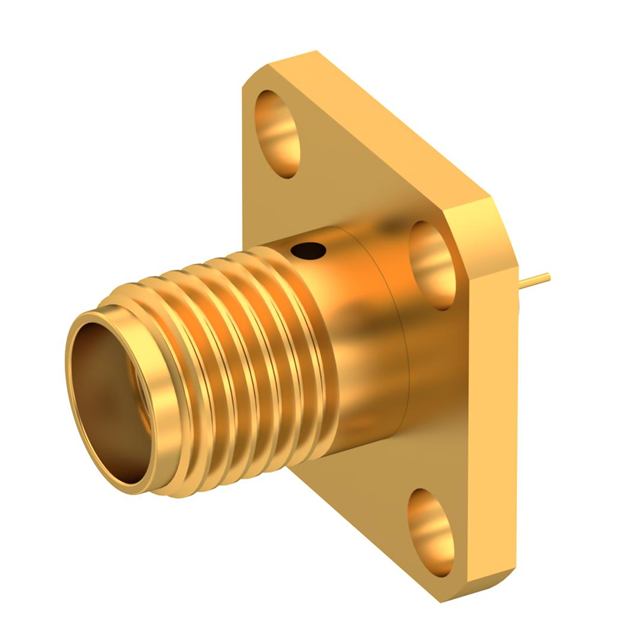

Radiall USA, Inc. R125512000	Gold	500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount	Flange	Threaded	Gold	50 Ohms

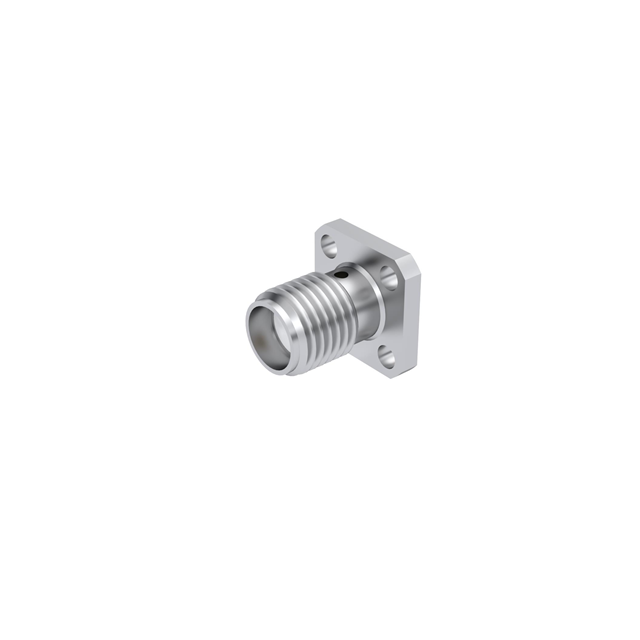

Radiall USA, Inc. R125510501		600 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Receptacle Female Socket		Solder Tab	18 GHz	SMA	Solder	Panel Mount Through Hole	Flange	Threaded	Silver	50 Ohms	Beryllium Copper

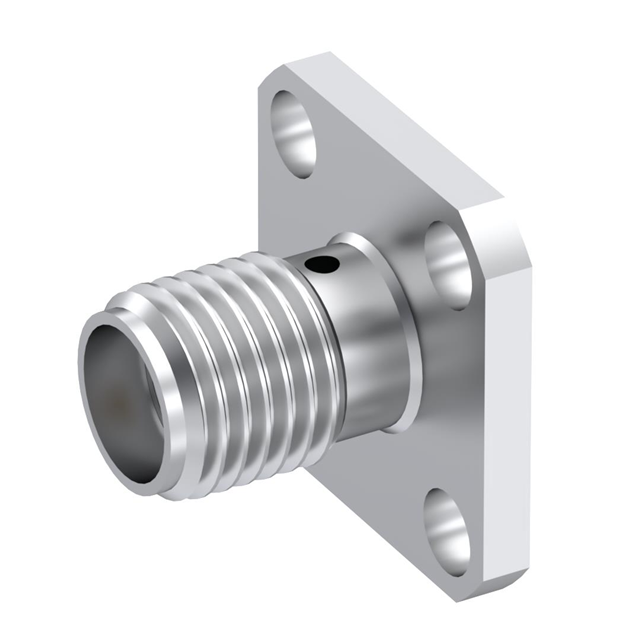

Radiall USA, Inc. R125510001		500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder Tab	18 GHz	SMA	Solder	Panel Mount Through Hole	Flange	Threaded	Silver	50 Ohms	Beryllium Copper
Radiall USA, Inc. R125510201

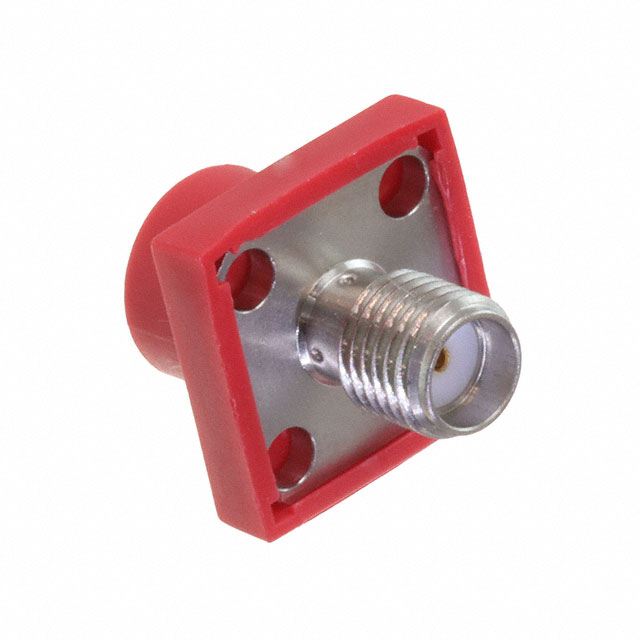

Radiall USA, Inc. R125512001		500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount	Flange	Threaded		50 Ohms	Beryllium Copper

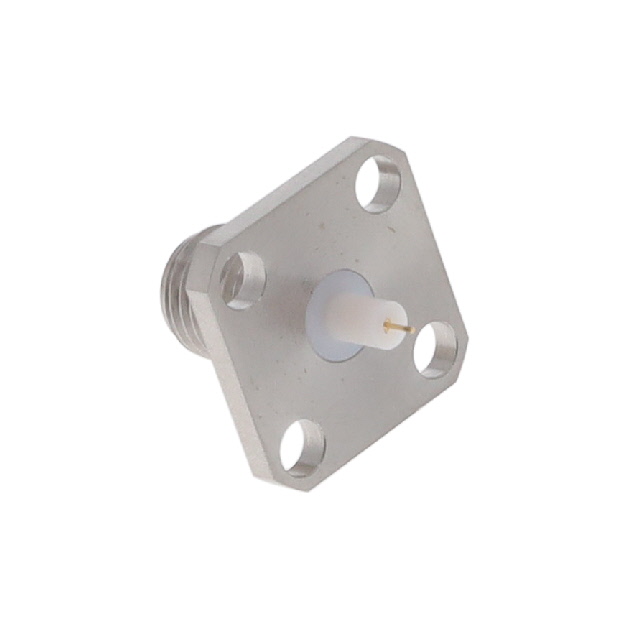

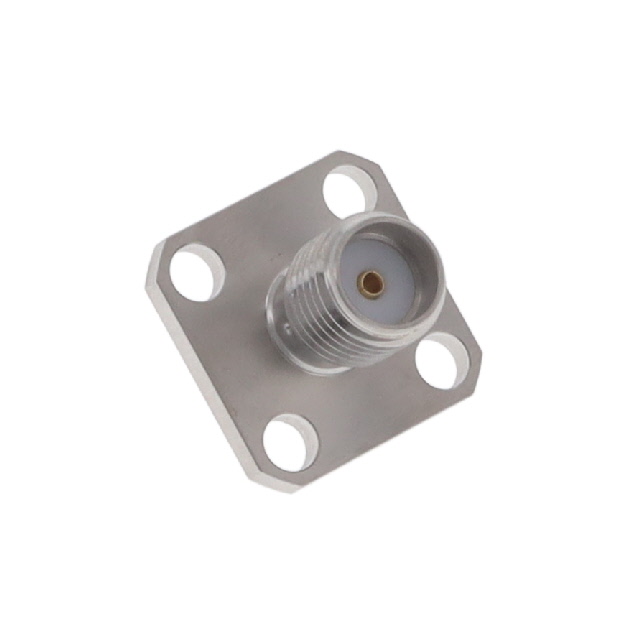

Radiall USA, Inc. R125512001W		250 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount	Flange	Threaded	Silver	50 Ohms	Beryllium Copper
Radiall USA, Inc. R125510000W	Gold	500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack		Solder Tab	18 GHz	SMA	Solder	Panel Mount Through Hole	Flange	Threaded	Gold	50 Ohms	Beryllium Copper
Radiall USA, Inc. R125513000W	Gold	500 V	-65 ░C	165 °C	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	1	Female Socket Jack	Extended Insulation	Solder	18 GHz	SMA	Solder	Panel Mount Through Hole	Flange	Threaded	Gold	50 Ohms	Beryllium Copper
