M50-312 Series

Catalog

BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M50 SERIES, SURFACE MOUNT, RECEPTACLE, 16, 1.27 MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Applications	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Rows [custom]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Features

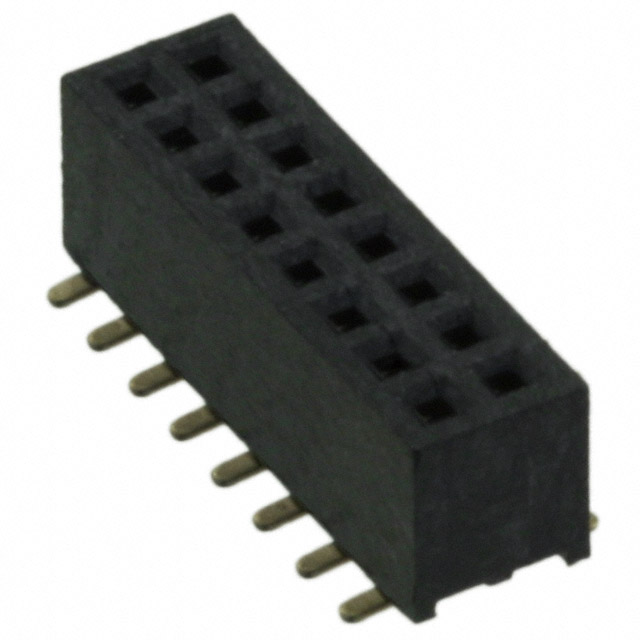

Harwin Inc. M50-3120845	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	16	Push-Pull

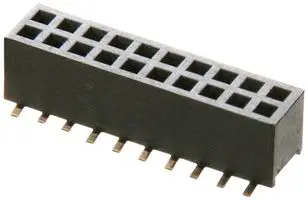

Harwin Inc. M50-3121045R	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	20	Push-Pull	Pick and Place
Harwin Inc. M50-3120545	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	10	Push-Pull
Harwin Inc. M50-3120845R	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	16	Push-Pull	Pick and Place
Harwin Inc. M50-3120745	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	14	Push-Pull
Harwin Inc. M50-3122045	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	40	Push-Pull
Harwin Inc. M50-3120445	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	8	Push-Pull
Harwin Inc. M50-3125045	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	100	Push-Pull

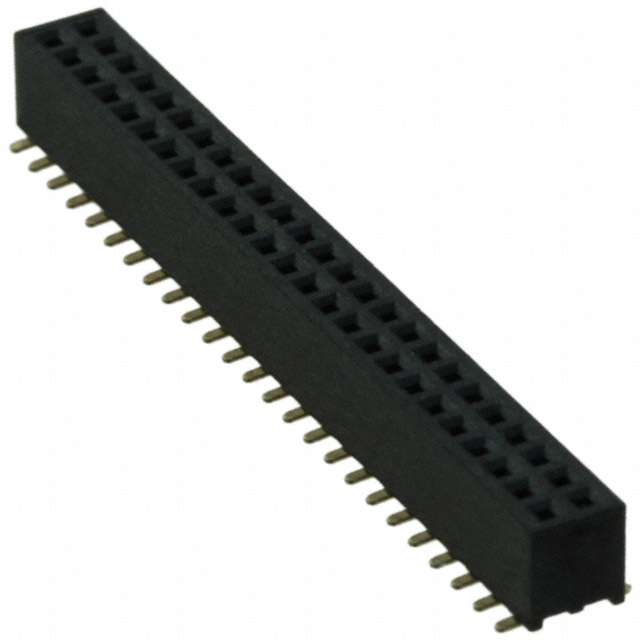

Harwin Inc. M50-3122545	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	50	Push-Pull
Harwin Inc. M50-3121145	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	General Purpose Medical Telecommunications	Board to Board Cable	-40 C	105 ░C	5.5 mm 6.18 mm	Receptacle	1.27 mm	0.05 in	Solder	Black	0.05 in	1.27 mm	Female Socket	2	All	0.142 in	3.6 mm	Gold	Gold	UL94 V-0	Surface Mount	Flash	22	Push-Pull
