29S211 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN MCX PLUG R/A 50OHM SOLDER
| Part | Body Finish | Body Material | Voltage Rating | Dielectric Material | Mating Cycles | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Connector Style | Connector Type | Mounting Type | Cable Group | Center Contact Material | Shield Termination | Impedance | Number of Ports | Frequency - Max [Max] | Housing Color | Contact Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

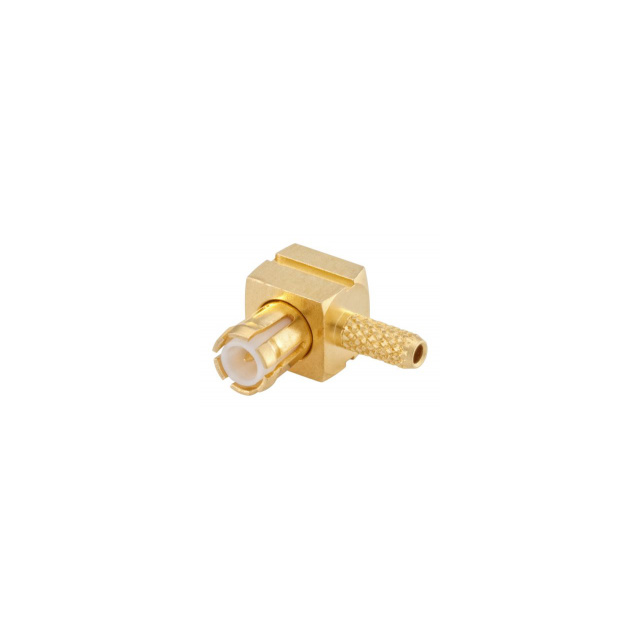

 Rosenberger | Gold | Brass | 335 V | Polytetrafluoroethylene (PTFE) | 500 | 1 Connector 1 End Cap 1 Ferrule | 155 C | -55 C | Gold | MCX | Plug Male Pin | Free Hanging (In-Line) Right Angle | 188A 316 RG-174A | Brass | Crimp | 50 Ohms | 1 | 6000 MHz | Gold | Solder | Snap-On |

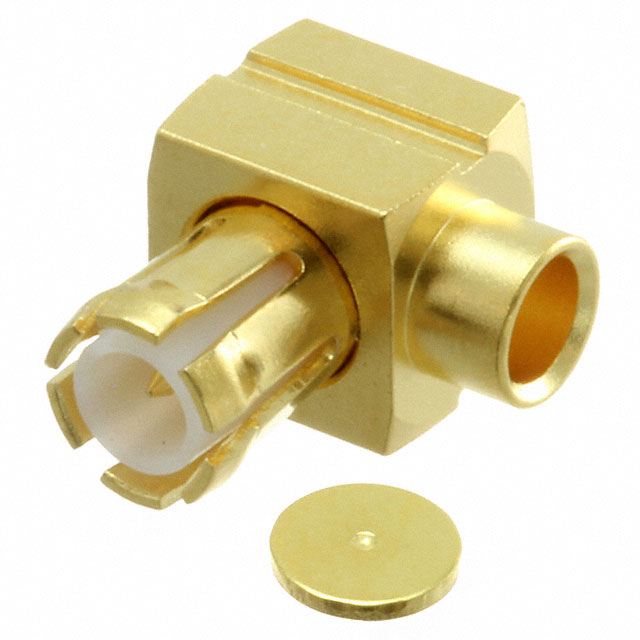

 Rosenberger | Gold | Beryllium Copper | 335 V | Polytetrafluoroethylene (PTFE) | 500 | 1 Connector 1 End Cap | 155 C | -55 C | Gold | MCX | Plug Male Pin | Free Hanging (In-Line) Right Angle | RG-405 (.085" Semi Rigid) | Brass | Solder | 50 Ohms | 1 | 6000 MHz | Gold | Solder | Snap-On |

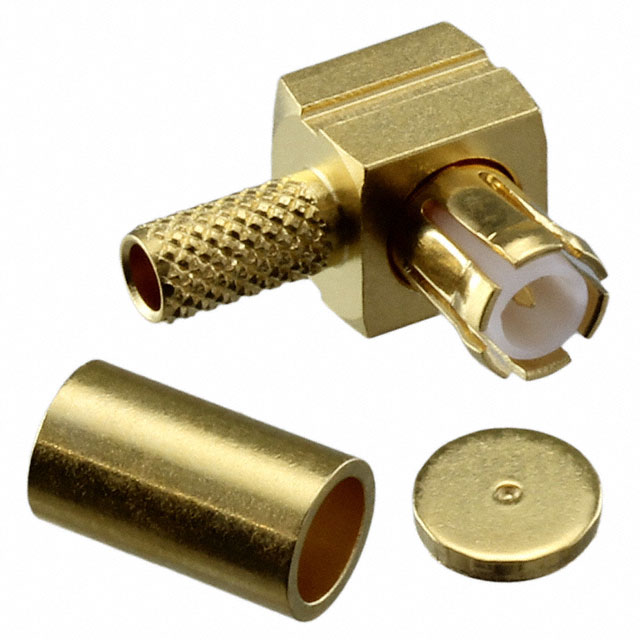

 Rosenberger | Gold | Brass | 335 V | Polytetrafluoroethylene (PTFE) | 500 | 155 C | -55 C | Gold | MCX | Plug Male Pin | Free Hanging (In-Line) Right Angle | RG-316 | Brass | Crimp | 50 Ohms | 1 | 6000 MHz | Gold | Solder | Snap-On |
