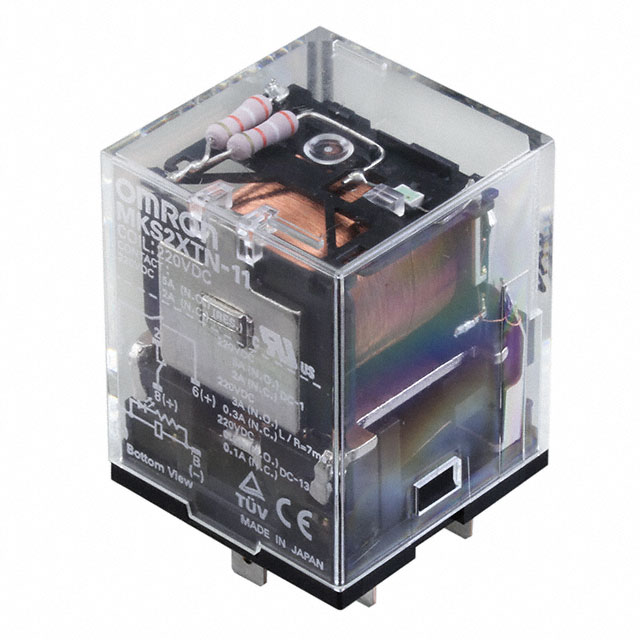

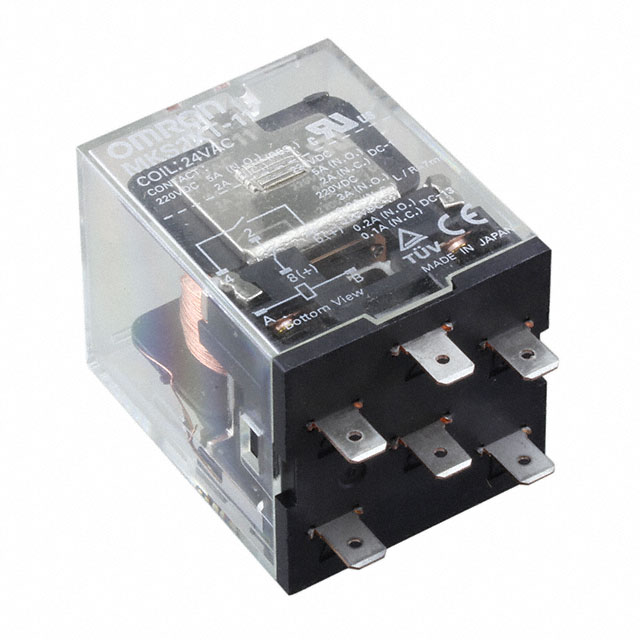

MKS2X Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPST 5A 24V
| Part | Contact Form | Approval Agency | Coil Type | Contact Material | Must Operate Voltage | Coil Current | Features | Coil Voltage | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Mounting Type | Contact Rating (Current) | Switching Voltage | Termination Style | Load - Max Switching | Release Time | Coil Resistance | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 19.2 VDC | 63.2 mA | Mechanical Indicator | 24 VDC | General Purpose | -25 °C | 60 °C | 30 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 380 Ohms | 3.6 VDC |
 Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 19.2 VAC | 96.3 mA | Lighted Indicator Test Button | 24 VAC | General Purpose | -25 °C | 60 °C | 20 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 48.4 Ohms | 7.2 VAC |
 Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 19.2 VDC | 63.2 mA | Test Button | 24 VDC | General Purpose | -40 °C | 60 °C | 30 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 380 Ohms | 3.6 VDC |
 Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 19.2 VAC | 96.3 mA | 24 VAC | General Purpose | -40 °C | 60 °C | 20 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 48.4 Ohms | 7.2 VAC | |
 Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 176 VDC | 6.8 mA | Mechanical Indicator | 220 VDC | General Purpose | -25 °C | 60 °C | 30 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 32.2 kOhms | 33 VDC |
Omron Electronics Inc-EMC Div | DPST-NO/NC | cURus TUV | Non Latching | Silver Tin Indium (AgSnIn) | 19.2 VDC | 63.2 mA | 24 VDC | General Purpose | -40 °C | 60 °C | 30 ms | Socketable | 5 A | 220 VDC | Plug In | 1100 W | 20 ms | 380 Ohms | 3.6 VDC |
