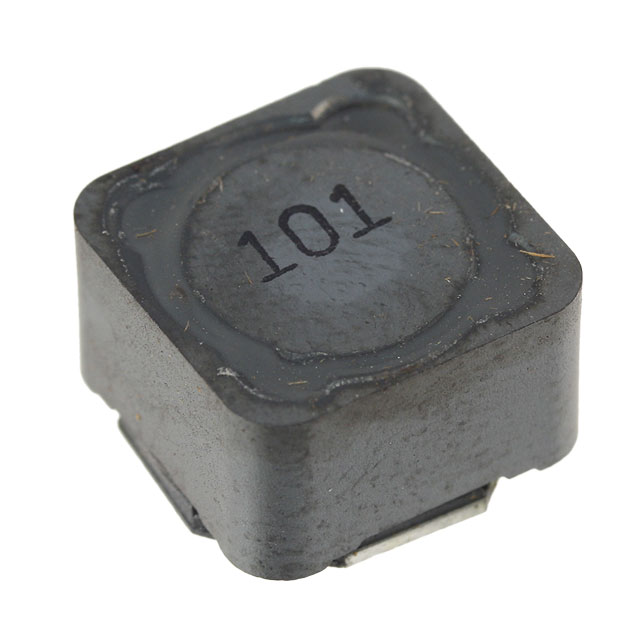

SRR1280 Series

Catalog

POWER INDUCTOR (SMD), 4.7 ΜH, 8.2 A, SHIELDED, 8.8 A, SRR1280 SERIES

Part	Q @ Freq	Tolerance	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Package / Case	Shielding	Inductance	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Inductance Frequency - Test	Type	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SRR1280-4R7Y	7.96 MHz 22	30 %	Surface Mount	8.2 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	30 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	4.7 ÁH	15.5 mOhm	8.8 A	100 kHz	Drum Core Wirewound
Bourns Inc. SRR1280-390M		20 %	Surface Mount	3.2 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	8.5 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	39 µH		3.1 A	100 kHz	Drum Core Wirewound	2.52 MHz	24	70 mOhm
Bourns Inc. SRR1280-820M		20 %	Surface Mount	2.3 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	5 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	82 µH		2.2 A	100 kHz	Drum Core Wirewound		20	130 mOhm	796 kHz
Bourns Inc. SRR1280-270M	2.52 MHz 26	20 %	Surface Mount	3.9 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	10 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	27 µH		3.7 A	100 kHz	Drum Core Wirewound
Bourns Inc. SRR1280-101M	18 796 kHz	20 %	Surface Mount	2.1 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	4.5 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	100 µH		2 A	100 kHz	Drum Core Wirewound			150 mOhm
Bourns Inc. SRR1280-2R4Y		30 %	Surface Mount	9.2 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	45 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	2.4 µH	10 mOhm	10.5 A	100 kHz	Drum Core Wirewound	7.96 MHz	20
Bourns Inc. SRR1280-180M		20 %	Surface Mount	4.8 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	12 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	18 µH	35 mOhm	4.6 A	100 kHz	Drum Core Wirewound	2.52 MHz	24
Bourns Inc. SRR1280-151Y		30 %	Surface Mount	1.85 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	4.1 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	150 µH	270 mOhm	1.9 A	100 kHz	Drum Core Wirewound	796 kHz	24
Bourns Inc. SRR1280-7R6Y	7.96 MHz 15	30 %	Surface Mount	5.9 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	21 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	7.6 µH	20 mOhm	6.5 A	100 kHz	Drum Core Wirewound
Bourns Inc. SRR1280-271V4K		10 %	Surface Mount	1.2 A	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	3.1 MHz	125 °C	-40 C	Ferrite	Nonstandard	Shielded	270 µH		1.6 A	100 kHz	Drum Core Wirewound		20	450 mOhm	796 kHz
