G7J-4A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE 4PST 25A 50V

Part	Load - Max Switching	Coil Type	Release Time	Must Release Voltage	Features	Relay Type	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Approval Agency	Must Operate Voltage	Mounting Type	Termination Style	Coil Resistance	Coil Current	Contact Form	Operate Time	Contact Rating (Current)
Omron Electronics Inc-EMC Div G7J-4A-B AC50	3125 W 6250 VA	Non Latching	50 ms	7.5 VAC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	50 VAC	CE CSA UR	37.5 VAC	Chassis Mount	Screw Terminal	1.38 kOhms	36 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-PZ DC24	3125 W 6250 VA	Non Latching	50 ms	2.4 VDC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	24 VDC	CE CSA UR	18 VDC	Through Hole	PC Pin	288 Ohms	83 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-T DC24	3125 W 6250 VA	Non Latching	50 ms	2.4 VDC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	24 VDC	CE CSA UR	18 VDC	Chassis Mount	Quick Connect - 0.250" (6.3mm)	288 Ohms	83 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A

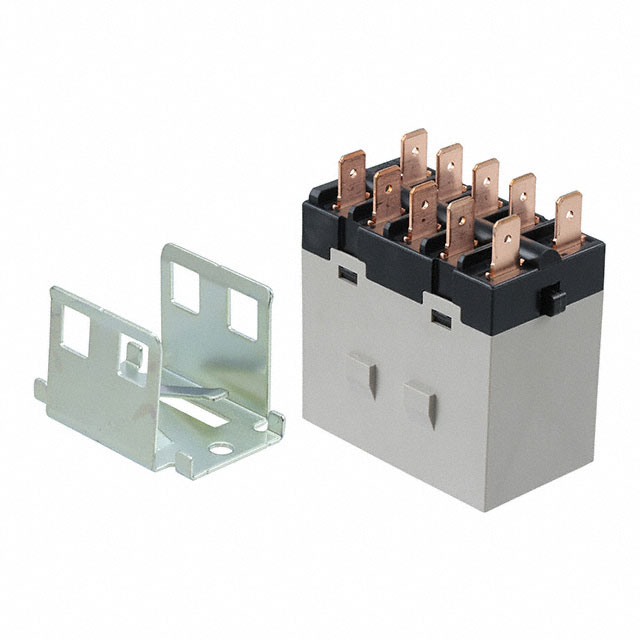

Omron Electronics Inc-EMC Div G7J-4A-T-W1 DC12	3125 W 6250 VA	Non Latching	50 ms	1.2 VDC	Bracket Included Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	12 VDC	CE CSA UR	9 VDC	Chassis Mount	Quick Connect - 0.250" (6.3mm)	72 Ohms	167 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A

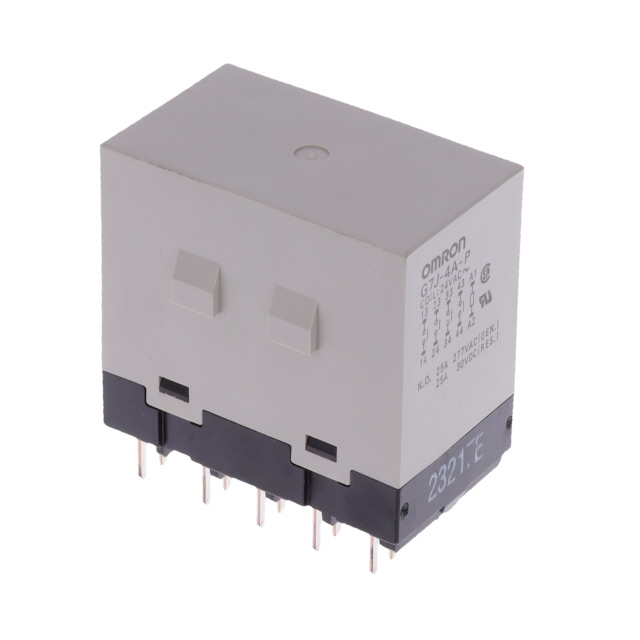

Omron Electronics Inc-EMC Div G7J-4A-P AC24	3125 W 6250 VA	Non Latching	50 ms	3.6 VAC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	24 VAC	CE CSA UR	18 VAC	Through Hole	PC Pin	333.3 Ohms	75 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-P DC100	3125 W 6250 VA	Non Latching	50 ms	10 VDC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	100 VDC	CE CSA UR	75 VDC	Through Hole	PC Pin	5 kOhms	20 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-B-W1 AC100/120	3125 W 6250 VA	Non Latching	50 ms	18 VAC	Bracket Included Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	120 VAC	CE CSA UR	75 VAC	Chassis Mount	Screw Terminal	5.55 kOhms	21.6 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-B-W1 AC24	3125 W 6250 VA	Non Latching	50 ms	3.6 VAC	Bracket Included Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	24 VAC	CE CSA UR	18 VAC	Chassis Mount	Screw Terminal	333.3 Ohms	75 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-B-W1 DC24	3125 W 6250 VA	Non Latching	50 ms	2.4 VDC	Bracket Included Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	24 VDC	CE CSA UR	18 VDC	Chassis Mount	Screw Terminal	288 Ohms	83 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
Omron Electronics Inc-EMC Div G7J-4A-T DC12	3125 W 6250 VA	Non Latching	50 ms	1.2 VDC	Test Button	General Purpose	125 VDC 250 VAC	-25 °C	60 °C	12 VDC	CE CSA UR	9 VDC	Chassis Mount	Quick Connect - 0.250" (6.3mm)	72 Ohms	167 mA	4PST-NO (DM) (4 Form X)	50 ms	25 A
