EHCBS Series

Catalog

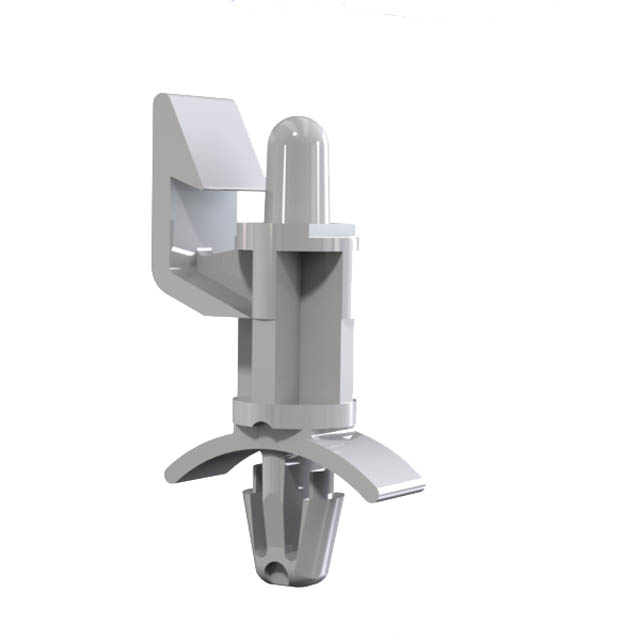

CBS SHT NOSE ST/CL FR 5/8"

Part	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height	Between Board Height	Between Board Height	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Holding Type	Features	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Type	Length - Overall	Length - Overall
Essentra Components EHCBS-7-10-19	3.96 mm	5 32"	0.156 in	15.88 mm	0.625 in	5 8	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon Flame Retardant	1.57 mm	0.062 in	0.0625 in	Edge Holding
Essentra Components EHCBS-7-8-01				12.7 mm	0.5 in	0.5 in	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Edge Holding	Winged	28.6 mm	1.126 in	3.99 mm	0.157 "	Snap Lock
Essentra Components EHCBS-8-14-01				22.23 mm	0.875 in	0.875 in	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon				Edge Holding						Snap Lock
Essentra Components EHCBS-6-6-01				9.53 mm	0.375 in	0.375 "	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Edge Holding	Winged	24 mm	0.945 "	3.99 mm	0.157 "	Snap Lock
Essentra Components EHCBS-7-10-01				15.88 mm	0.625 in	5 8	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Edge Holding	Winged			3.99 mm	0.157 "	Snap Lock	1.252 "	31.81 mm
Essentra Components EHCBS-6-12-01				19.05 mm	0.75 "	0.75 "	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Edge Holding	Winged	33.6 mm	1.323 in	3.99 mm	0.157 "	Snap Lock
Essentra Components EHCBS-10-19	3.96 mm	5 32"	0.156 in	15.88 mm	0.625 in	5 8	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon Flame Retardant	1.57 mm	0.062 in	0.0625 in	Edge Holding
Essentra Components EHCBS-9-6-01				9.53 mm	0.375 in	0.375 "	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon				Edge Holding		24 mm	0.945 "			Snap Lock
Essentra Components EHCBS-7-8-19	3.96 mm	5 32"	0.156 in	12.7 mm	0.5 in	0.5 in	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon Flame Retardant	1.57 mm	0.062 in	0.0625 in	Edge Holding
Essentra Components EHCBS-6-8-19	3.96 mm	5 32"	0.156 in	12.7 mm	0.5 in	0.5 in	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	Nylon Flame Retardant	1.57 mm	0.062 in	0.0625 in	Edge Holding
