GB40S05 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

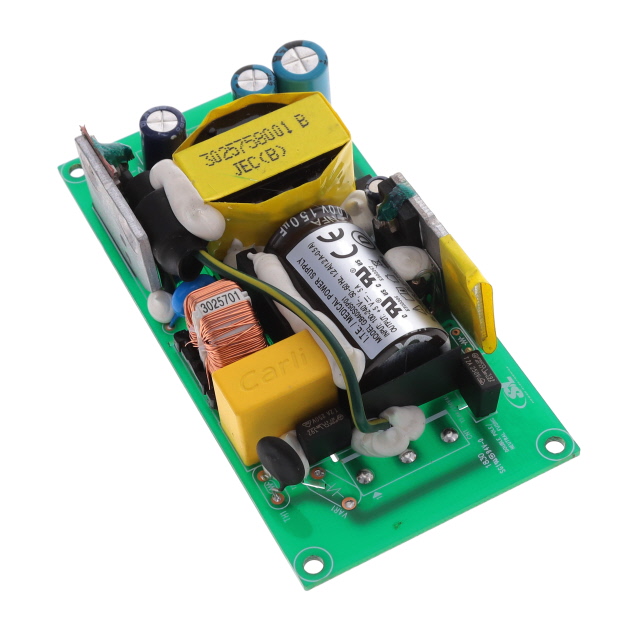

AC/DC CONVERTER 5V 25W
| Part | Voltage - Isolation | Current - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Features | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Power (Watts) | Efficiency | Approval Agency | Type | Voltage - Output 1 | Standard Number | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 4000 V | 5 A | 1 | 70 °C | -25 °C | 264 VAC | 90 VAC | Universal Input | ITE (Commercial) Medical | 101.6 mm | 4 " | 2 in | 0.81 in | 20.6 mm | 50.8 mm | Chassis Mount | 25 W | 88 % | CE cURus DEMKO | Open Frame | 5 V | 60601-1; 62368-1 | |
 SL POWER / Advanced Energy | 4000 V | 5 A | 1 | 70 °C | -25 °C | 240 VAC | 100 VAC | Universal Input | ITE (Commercial) Medical | 101.6 mm | 4 " | 1.9 " | 1 in | 25.4 mm | 48.3 mm | Chassis Mount | 25 W | 88 % | CE cURus UL | Open Frame | 5 V |
