AWH 60A Series

Catalog

CONN HEADER R/A 60POS 2.54MM

Part	Connector Type	Insulation Color	Number of Rows [custom]	Contact Shape	Fastening Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions Loaded	Material Flammability Rating	Contact Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Features	Shrouding	Insulation Material	Contact Material	Contact Finish - Mating	Mounting Type	Pitch - Mating	Pitch - Mating

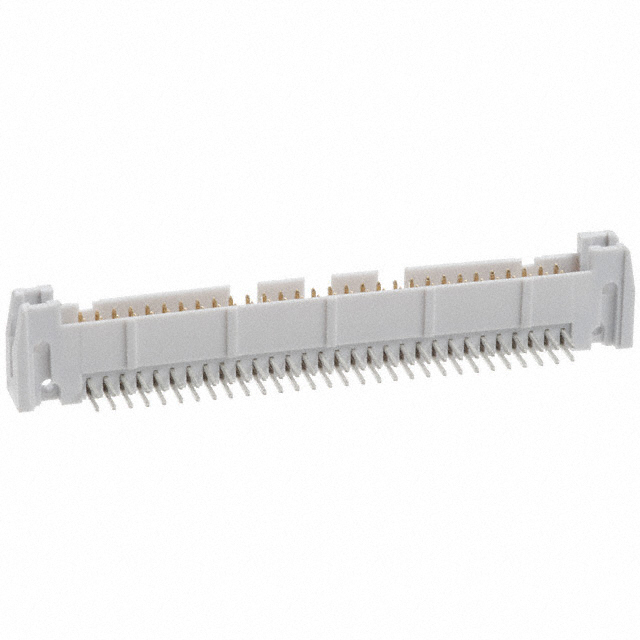

Assmann WSW Components AWH60A-0202-T-R	Header	Gray	2	Square	Push-Pull	Board to Cable/Wire	3.81 mm	0.15 in	-40 C	105 ░C	Solder	Tin	Flash	3 A	All	UL94 V-0	Male Pin	60	0.1 in	2.54 mm	17 mm	0.669 in	Keying Slot	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Gold	Right Angle Through Hole	0.1 "	2.54 mm

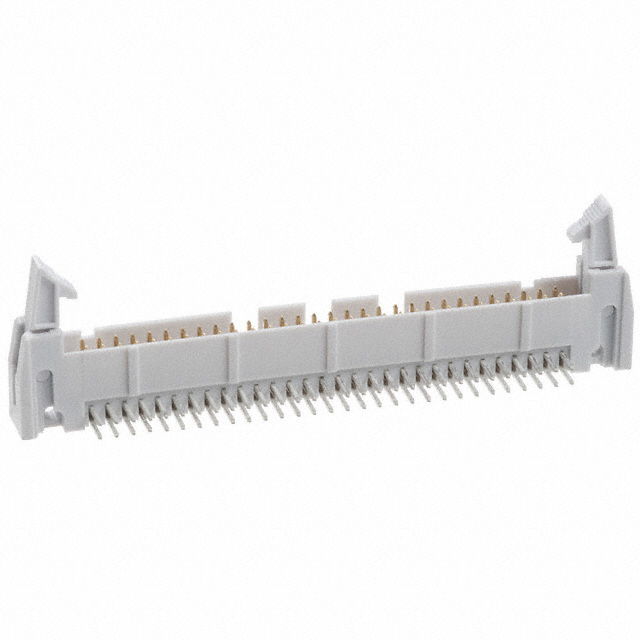

Assmann WSW Components AWH60A-0232-T-R	Header	Gray	2	Square	Latch Lock/Eject Hooks Long	Board to Cable/Wire	3.81 mm	0.15 in	-40 C	105 ░C	Solder	Tin	Flash	3 A	All	UL94 V-0	Male Pin	60	0.1 in	2.54 mm	17 mm	0.669 in	Keying Slot	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Gold	Right Angle Through Hole	0.1 "	2.54 mm
