HGP.2S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 8P GOLD SLDR CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Color	Mounting Feature	Shielding	Material Flammability Rating	Current Rating (Amps)	Shell Size - Insert	Orientation	Insert Material	Features	Shell Finish	Applications	Ingress Protection	Primary Material	Contact Material	Shell Material	Contact Finish - Mating	Number of Positions	Mounting Type
LEMO HGP.2S.308.CLLPV	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	9 A	308	Keyed	Polyetheretherketone (PEEK)	Potted Vacuumtight	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold	8	Panel Mount
LEMO HGP.2S.306.CLLP	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	12 Amps	306	Keyed	Polyetheretherketone (PEEK)	Potted	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold	6	Panel Mount
LEMO HGP.2S.306.CLLPV	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	12 Amps	306	Keyed	Polyetheretherketone (PEEK)	Potted Vacuumtight	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold	6	Panel Mount
LEMO HGP.2S.303.CLLPV	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	15 A	303	Keyed	Polyetheretherketone (PEEK)	Potted Vacuumtight	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold		Panel Mount

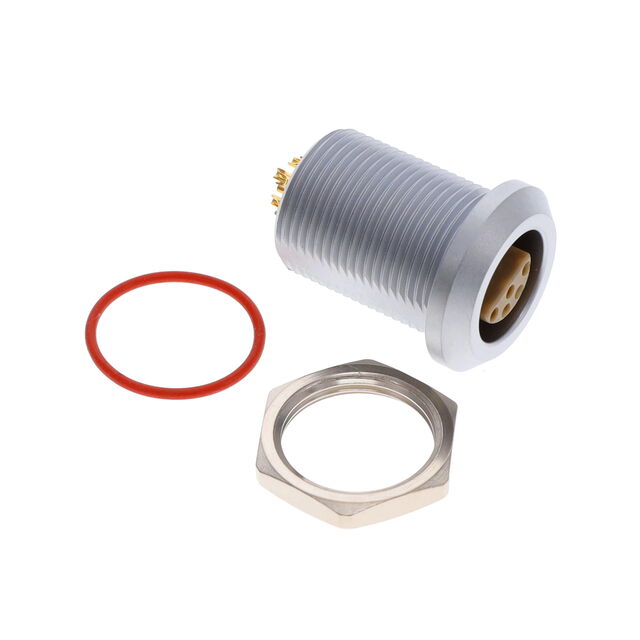

LEMO HGP.2S.310.CLLP	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	7 A	310	Keyed	Polyetheretherketone (PEEK)	Potted	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold	10	Panel Mount
LEMO HGP.2S.310.CLLPV	80 °C	-20 ░C	Receptacle Female Sockets and Male Pins	Push-Pull	Silver	Bulkhead - Rear Side Nut	Shielded	UL94 V-0	7 A	310	Keyed	Polyetheretherketone (PEEK)	Potted Vacuumtight	Chrome	Aviation Military	IP68 - Dust Tight Waterproof	Metal	Brass Bronze	Brass	Gold	10	Panel Mount
