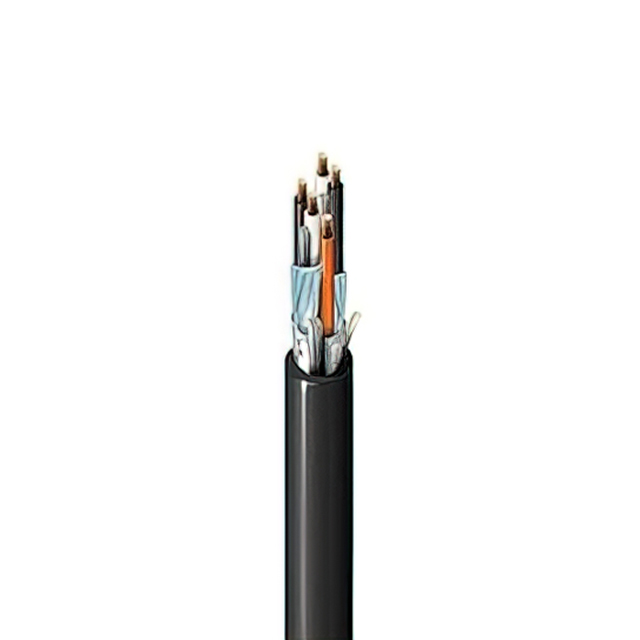

1529A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 7COND 18/22AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Material | Features | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Number of Conductors | Ratings | Length | Length [x] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 18 AWG 22 AWG | -30 ░C | 105 ░C | Multi-Pair | 300 VDC | 10.67 mm | 0.42 in | Foil | 7 | 26 AWG 30 AWG | Black | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | 7 | UL Style 2464 | 2286 m | 7500 ft | Instrumentation |
