AS Series

Catalog

SLIDE SWITCH, DPDT, ON-NONE-ON, THROUGH HOLE, 28 V

Part	Actuator Material	Electrical Life	Mechanical Life	Operating Force	Switch Travel	Voltage Rating - DC	Mounting Type	Contact Material	Current Rating (Amps)	Features	Voltage Rating - AC	Actuator Type	Termination Style	Contact Finish	Contact Timing	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length
NKK Switches AS22AP	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Through Hole	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Standard	PC Pin	Gold	Non-Shorting (BBM)	On-On	2.5 mm	85 °C	-30 ░C	DPDT

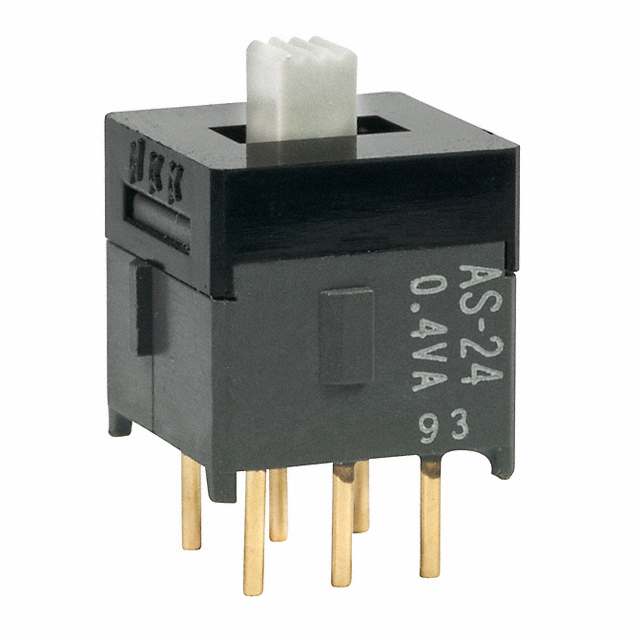

NKK Switches AS24AP	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Through Hole	Phosphor Bronze	0.4 VA	Jumper needed to achieve triple throw	28 V	Standard	PC Pin	Gold	Non-Shorting (BBM)	On-On-On	2.5 mm	85 °C	-30 ░C	SP3T
NKK Switches AS23BP	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Through Hole	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Flush	PC Pin	Gold	Non-Shorting (BBM)	On-Off-On		85 °C	-30 ░C	DPDT	Flush
NKK Switches AS11BV						28 V	Right Angle Through Hole Vertical	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Flush	PC Pin	Gold	Non-Shorting (BBM)	On-Off		85 °C	-30 ░C	SPST	Flush
NKK Switches AS12CW	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Through Hole	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Standard	Wire Wrap	Gold	Non-Shorting (BBM)	On-On	3.8 mm	85 °C	-30 ░C	SPDT
NKK Switches AS23AV	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Right Angle Through Hole Vertical	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Standard	PC Pin	Gold	Non-Shorting (BBM)	On-Off-On	2.5 mm	85 °C	-30 ░C	DPDT
NKK Switches AS22BB						28 V	Through Hole	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Flush	PC Pin	Gold	Non-Shorting (BBM)	On-On		85 °C	-30 ░C	DPDT	Flush
NKK Switches AS23AB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	50000 Cycles	260 gf	2.5 mm	28 V	Through Hole	Phosphor Bronze	0.4 VA	Epoxy Sealed Terminals	28 V	Standard	PC Pin	Gold	Non-Shorting (BBM)	On-Off-On	2.5 mm	85 °C	-30 ░C	DPDT
